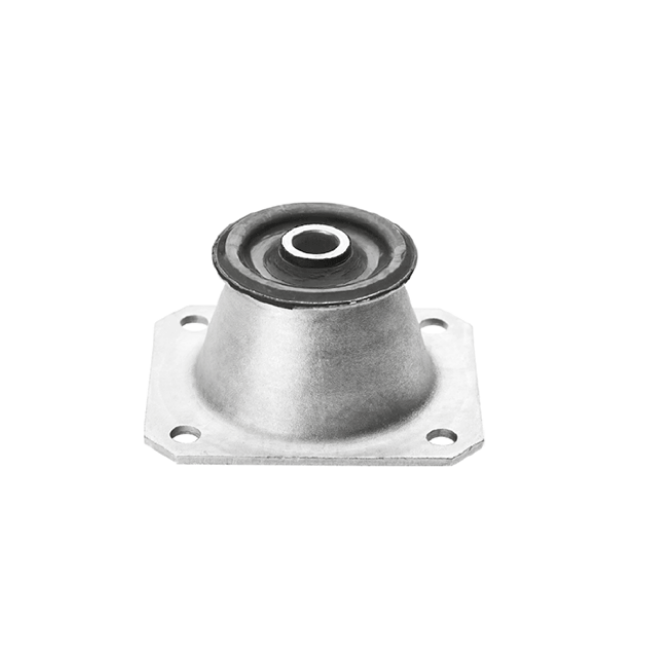

OKTK.03.00 Conical Vibration Damper
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

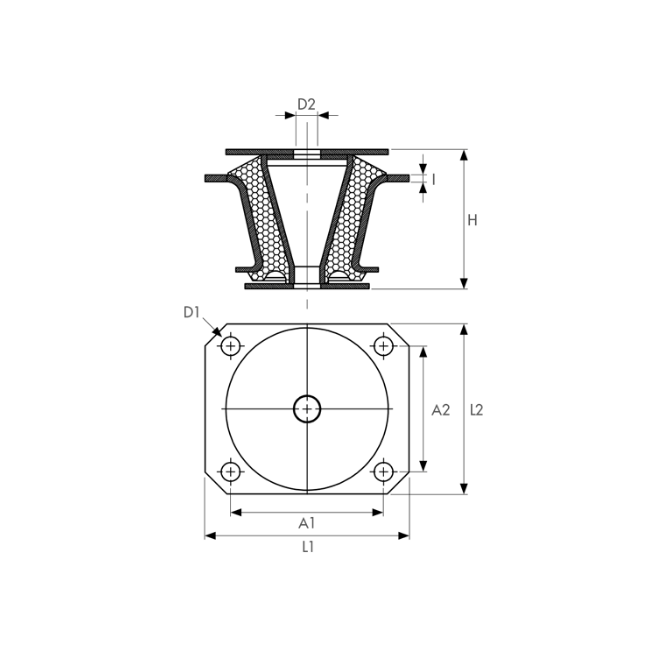

| Ürün Kodu | L1 | L2 | A1 | A2 | D2 | D1 | I | H | Max. Yük |
|---|---|---|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Max. Load (Kg) |
| OKTK.03.00 | 120 | 100 | 90 | 74 | 16 | 11 | 4 | 81 | 618 |
