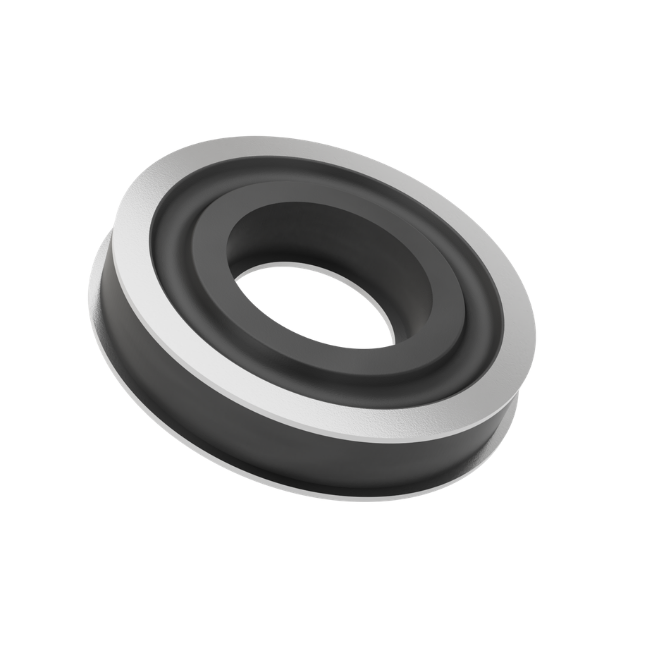

OKST Cylindrical Antivibration Mount
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

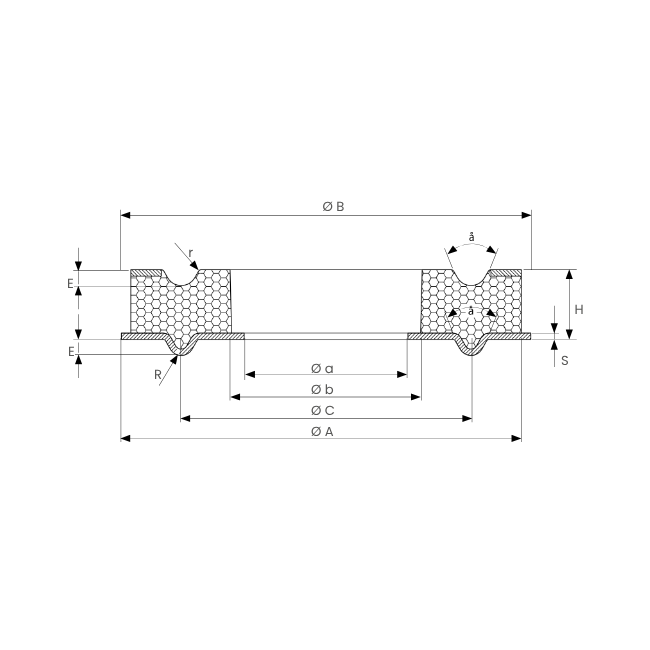

| Ürün Kodu | Ø A | Ø a | Ø B | Ø b | Ø C | H | s | E | α | R | r |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| OKST.01.02 | 65 | 6 | 62 | 30 | 46 | 11 | 1 | 2,5 | 60 | 2 | 0,5 |
| OKST.02.02 | 95 | 45 | 90 | 50 | 70 | 10,5 | 1,5 | 2,5 | 60 | 2,5 | 1 |
| OKST.03.02 | 100 | 35 | 90 | 40 | 64 | 27,5 | 1,5 | 3,5 | 60 | 3 | 1 |
| OKST.04.02 | 110 | 30 | 102 | 38 | 76 | 20,8 | 2 | 3,5 | 60 | 3 | 1 |
| OKST.05.02 | 110 | 30 | 102 | 38 | 76 | 25,8 | 2 | 3,5 | 60 | 3 | 1 |
| OKST.06.02 | 110 | 40 | 102 | 44 | 76 | 15,8 | 2 | 3,5 | 60 | 3 | 1 |
| OKST.07.02 | 130 | 55 | 123 | 60 | 90 | 16 | 2 | 5 | 60 | 4 | 2 |
| OKST.08.02 | 153 | 55 | 145 | 60 | 102 | 16 | 2 | 5 | 60 | 4 | 2 |
| OKST.09.02 | 153 | 55 | 145 | 60 | 102 | 30 | 2 | 5 | 60 | 4 | 2 |
| OKST.10.02 | 155 | 75 | 150 | 80 | 115 | 12 | 2 | 5 | 60 | 4 | 2 |
| OKST.11.02 | 160 | 90 | 155 | 95 | 125 | 12 | 2 | 5 | 60 | 4 | 2 |
| OKST.12.02 | 164 | 60 | 156 | 64 | 110 | 16 | 2 | 4 | 60 | 4 | 2 |
| OKST.13.02 | 164 | 60 | 156 | 64 | 110 | 23 | 2 | 4 | 60 | 4 | 2 |
| OKST.14.02 | 210 | 55 | 200 | 60 | 154 | 20 | 2 | 6 | 60 | 6 | 1,2 |
| OKST.15.02 | 210 | 95 | 200 | 100 | 154 | 20 | 2 | 6 | 60 | 6 | 1,2 |
| OKST.16.02 | 220 | 66 | 200 | 100 | 154 | 62 | 2 | 6 | 60 | 6 | 1,2 |
| OKST.17.02 | 240 | 70 | 230 | 76 | 154 | 25 | 2 | 6 | 60 | 6 | 2 |
| OKST.18.02 | 265 | 78 | 250 | 90 | 166 | 27,8 | 2,75 | 7 | 60 | 6 | 2 |
| OKST.19.02 | 320 | 154 | 310 | 160 | 235 | 18 | 3 | 7 | 60 | 6 | 2 |
