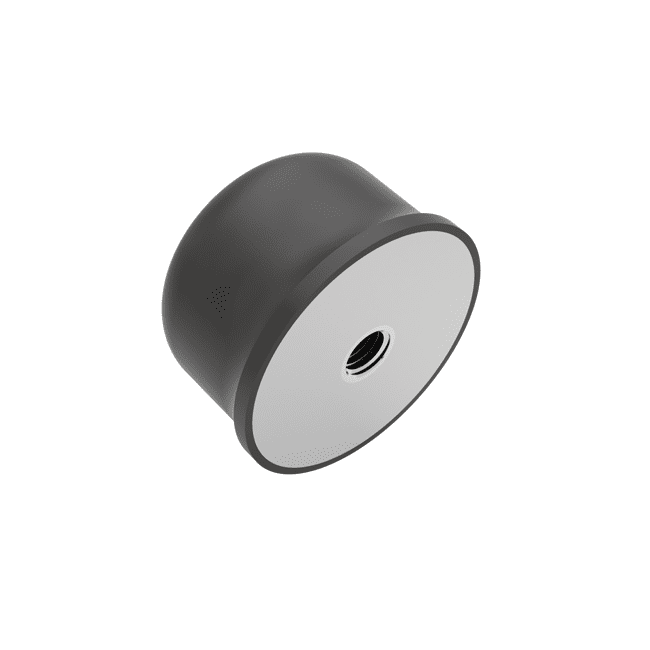

OKSKV-2 Cylindrical Vibration Mount
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

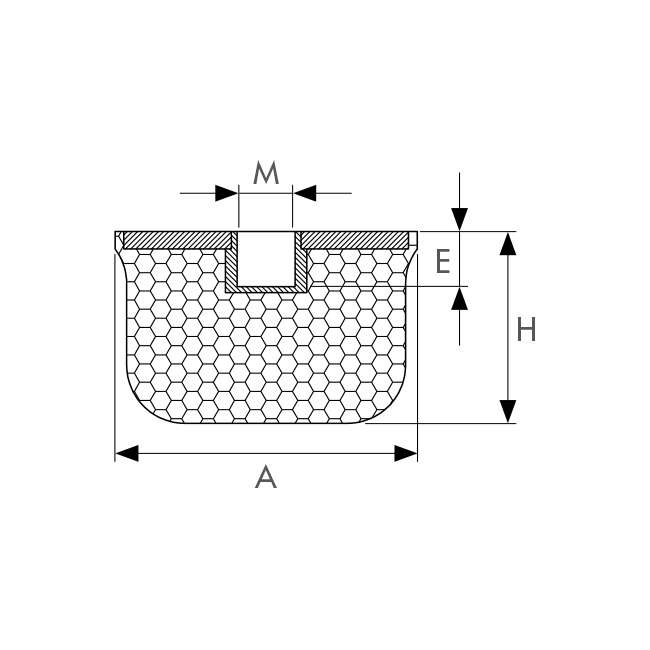

| Dış Çap | Yükseklik | Somun Derinliği | Metrik | |
|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Nut Depth | Metric |
| Product Code | A (mm) | H (mm) | E (mm) | M |
| OKSKV.5233.M1010 | 52 | 33 | 10 | 10 |
| OKSKV.8060.M1212 | 80 | 60 | 12 | 12 |
| OKSKV.12590.M1616 | 125 | 90 | 16 | 16 |
