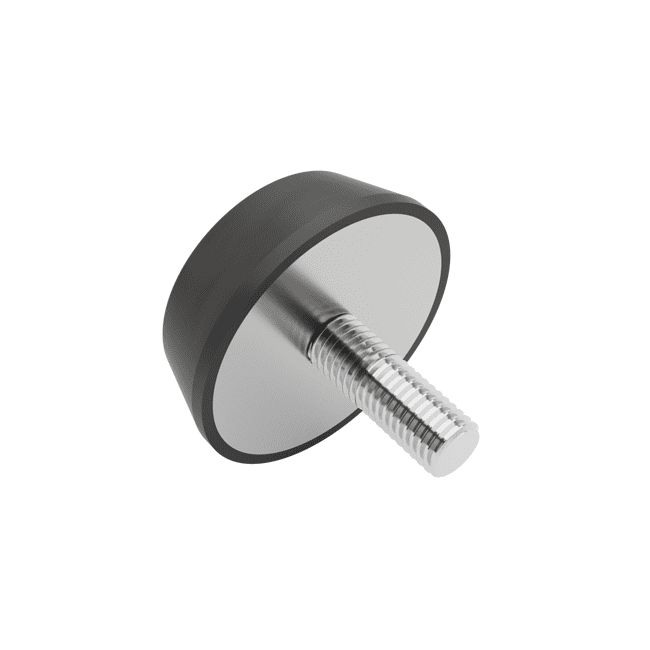

OKSKA Cylindrical Vibration Mount
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

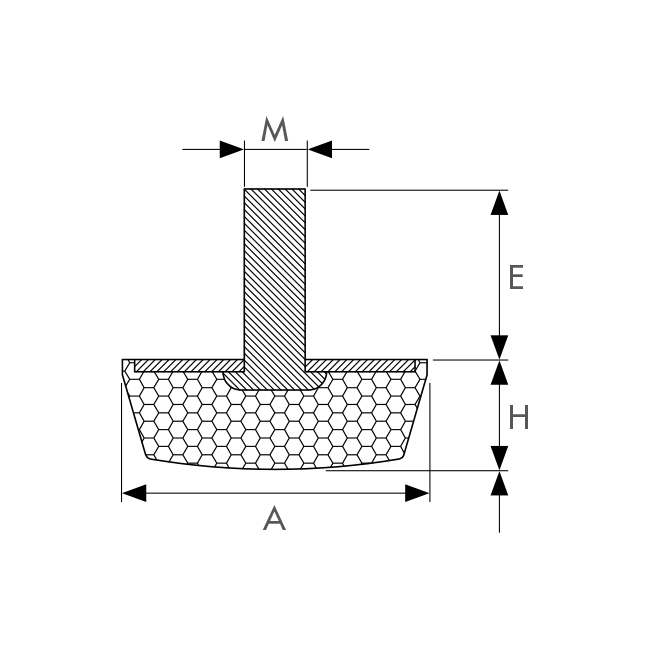

| Dış Çap | Yükseklik | Civ. Boyu | Metrik Ölçüsü | |
|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Bolt Lenght | Metric Size |
| Product Code | A (mm) | H (mm) | E (mm) | M |
| OKSKA.5018.M1028 | 50 | 18 | 28 | 10 |
