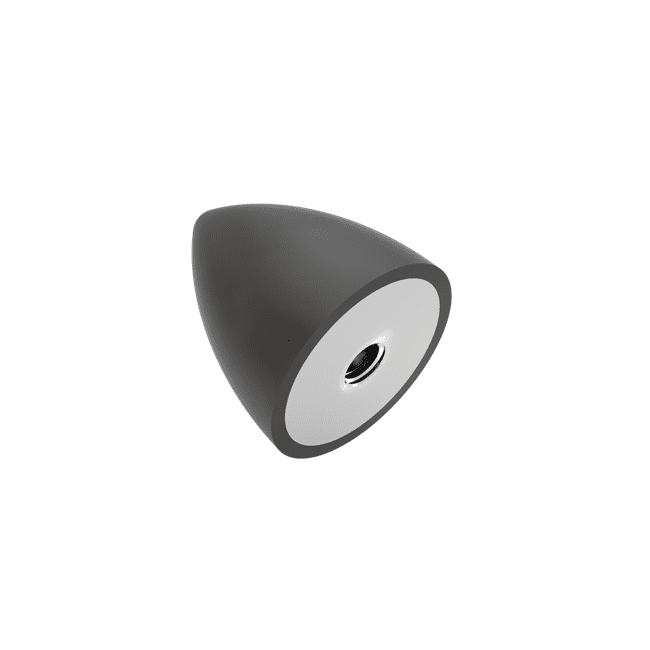

OKSEP Cylindrical Vibration Mount (Type EP)
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

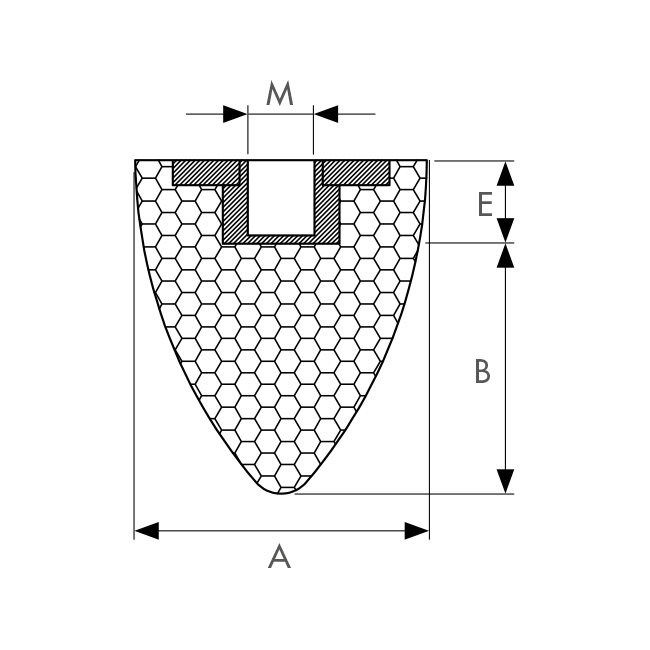

| Dış Çap | Yükseklik | Somun Derinliği | Metrik | |
|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Nut Depth | Metric |
| Product Code | A (mm) | B (mm) | E (mm) | M |
| OKSEP.1515.M404 | 15 | 15 | 4 | 4 |
| OKSEP.2024.M606 | 20 | 24 | 6 | 6 |
| OKSEP.2515.M606 | 25 | 15 | 6 | 6 |
| OKSEP.2519.M808 | 25 | 19 | 8 | 8 |
| OKSEP.2520.M808 | 25 | 20 | 8 | 8 |
| OKSEP.2522.M808 | 25 | 22 | 8 | 8 |
| OKSEP.2525.M606 | 25 | 25 | 6 | 6 |
| OKSEP.3030.M808 | 30 | 30 | 8 | 8 |
| OKSEP.3036.M606 | 30 | 36 | 6 | 6 |
| OKSEP.3036.M808 | 30 | 36 | 8 | 8 |
| OKSEP.4030.M808 | 40 | 30 | 8 | 8 |
| OKSEP.5050.M808 | 50 | 50 | 8 | 8 |
| OKSEP.5058.M808 | 50 | 58 | 8 | 8 |
| OKSEP.5064.M808 | 50 | 64 | 8 | 8 |
| OKSEP.7589.M1212 | 75 | 89 | 12 | 12 |
| OKSDP.10694.M1212 | 106 | 94 | 12 | 12 |
