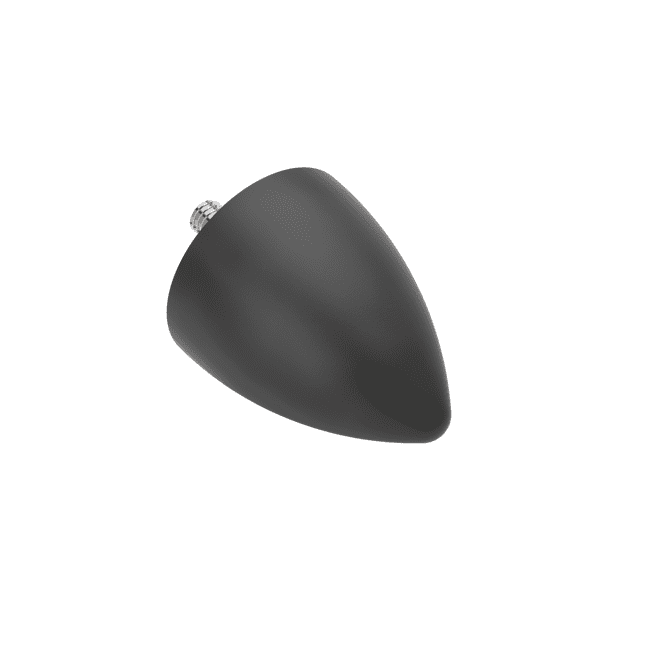

Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

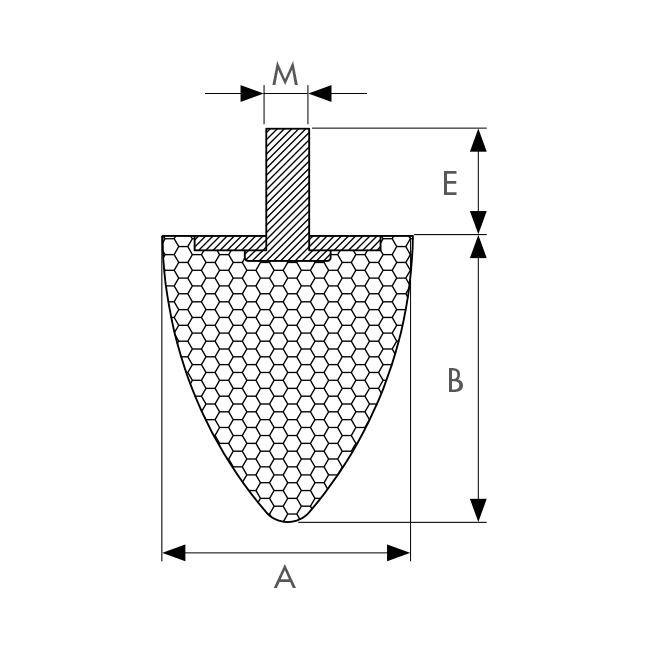

| Dış Çap | Yükseklik | Civ. Boyu | Metrik | |
|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Bolt Length | Metric |
| Product Code | A (mm) | B (mm) | E (mm) | M |
| OKSDP.1515.M418 | 15 | 15 | 18 | 4 |
| OKSDP.2024.M618 | 20 | 24 | 18 | 6 |
| OKSDP.2515.M618 | 25 | 15 | 18 | 6 |
| OKSDP.2519.M820 | 25 | 19 | 20 | 8 |
| OKSDP.2520.M820 | 25 | 20 | 20 | 8 |
| OKSDP.2522.M820 | 25 | 22 | 20 | 8 |
| OKSDP.2525.M618 | 25 | 25 | 18 | 6 |
| OKSDP.3030.M820 | 30 | 30 | 20 | 8 |
| OKSDP.3036.M618 | 30 | 36 | 18 | 6 |
| OKSDP.3036.M820 | 30 | 36 | 20 | 8 |
| OKSDP.4030.M820 | 40 | 30 | 20 | 8 |
| OKSDP.5050.M820 | 50 | 50 | 20 | 8 |
| OKSDP.5058.M820 | 50 | 58 | 20 | 8 |
| OKSDP.5064.M820 | 50 | 64 | 20 | 8 |
| OKSDP.7589.M1237 | 75 | 89 | 37 | 12 |
| OKSDP.10694.M1232 | 106 | 94 | 32 | 12 |
