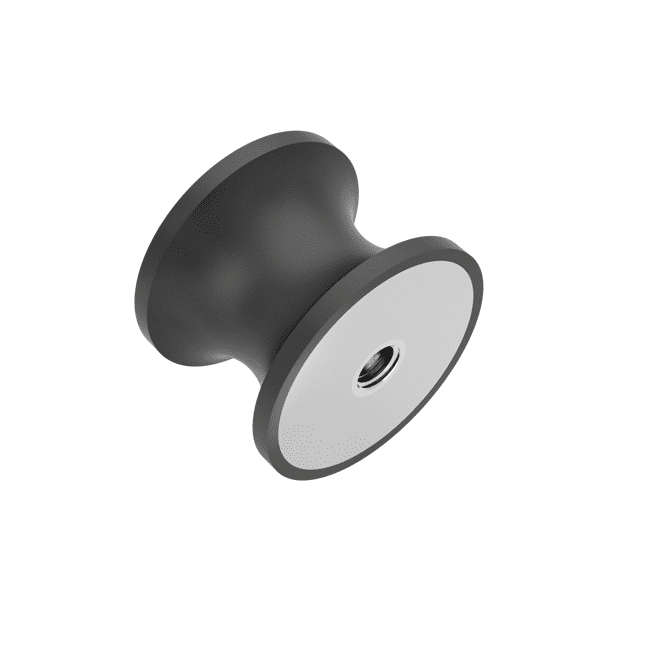

OKSCT Cylindrical Vibration Mount (Type CT)
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

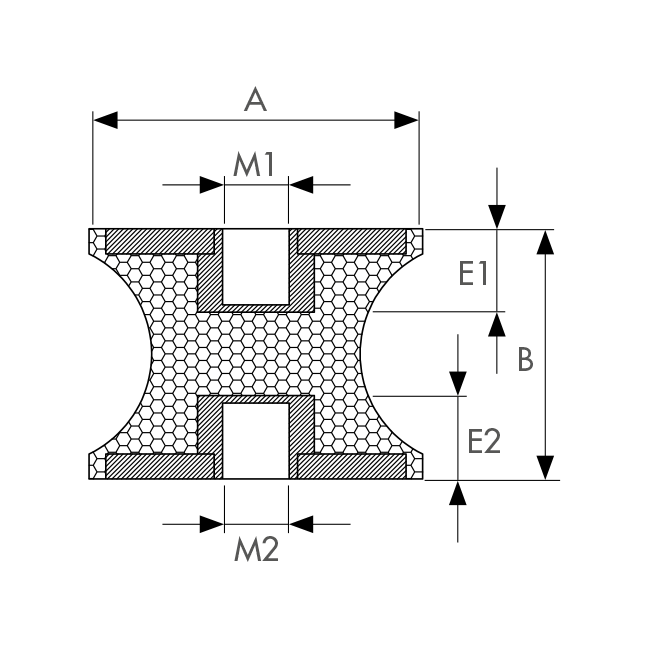

| Dış Çap | Yükseklik | Somun Derinliği 1 | Metrik | Somun Derinliği 2 | Metrik | |
|---|---|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Nut Depth 1 | Metric | Nut Depth 2 | Metric |
| Product Code | A (mm) | B (mm) | E1 (mm) | M1 | E2 (mm) | M2 |
| OKSCT.2019.M606.M606 | 20 | 19 | 6 | 6 | 6 | 6 |
| OKSCT.2520.M606.M606 | 25 | 20 | 6 | 6 | 6 | 6 |
| OKSCT.2525.M606.M606 | 25 | 25 | 6 | 6 | 6 | 6 |
| OKSCT.3020.M808.M808 | 30 | 20 | 8 | 8 | 8 | 8 |
| OKSCT.3025.M808.M808 | 30 | 25 | 8 | 8 | 8 | 8 |
| OKSCT.4030.M808.M808 | 40 | 30 | 8 | 8 | 8 | 8 |
| OKSCT.4048.M808.M808 | 40 | 48 | 8 | 8 | 8 | 8 |
| OKSCT.5030.M1010.M1010 | 50 | 30 | 10 | 10 | 10 | 10 |
| OKSCT.8060.M1212.M1212 | 80 | 60 | 12 | 12 | 12 | 12 |
| OKSCT.8060.M1414.M1414 | 80 | 60 | 14 | 14 | 14 | 14 |
| OKSCT.8065.M1212.M1212 | 80 | 65 | 12 | 12 | 12 | 12 |
| OKSCT.8065.M1414.M1414 | 80 | 65 | 14 | 14 | 14 | 14 |
| OKSCT.11060.M1414.M1414 | 110 | 60 | 14 | 14 | 14 | 14 |
| OKSCT.12060.M1616.M1616 | 120 | 60 | 16 | 16 | 16 | 16 |
