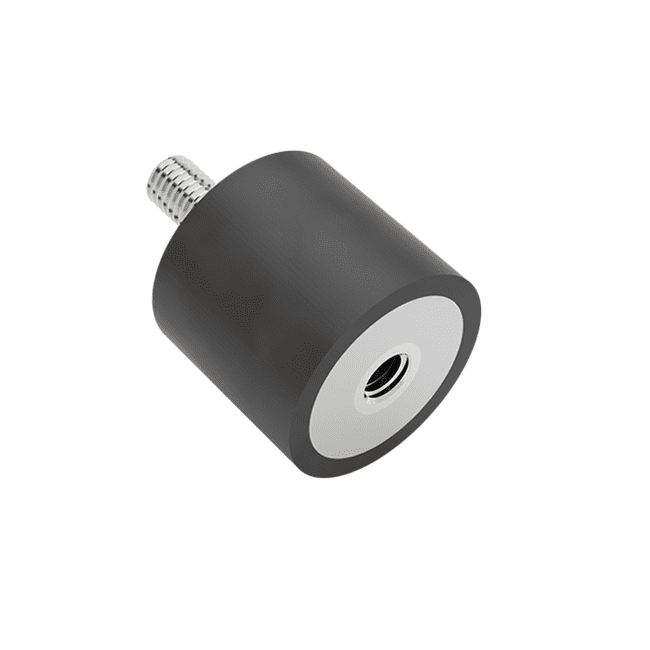

OKSB Cylindrical Vibration Mount (Type B)
: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.
| Dış Çap | Yükseklik | Civ.Boyu 1 | Metrik | Somun Derinliği 2 | Metrik | |
|---|---|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Bolt Lenght 1 | Metric | Nut Depth 2 | Metric |

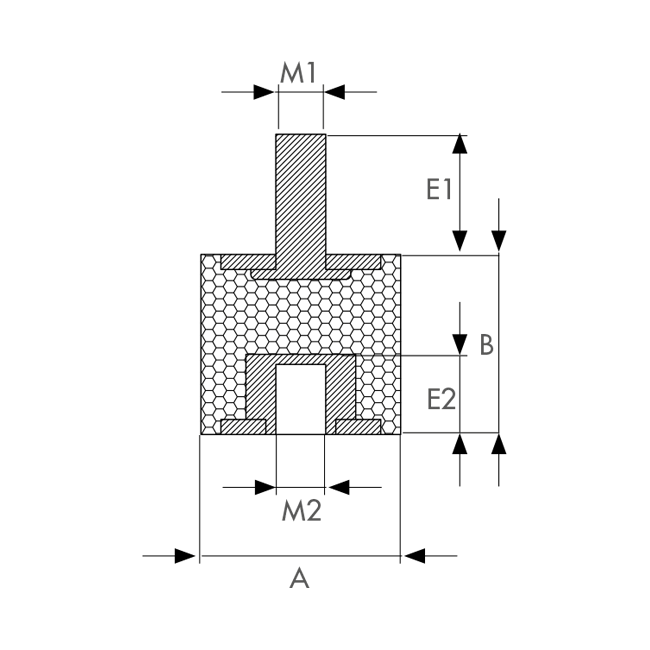

| Product Code | A(mm) | B(mm) | E1(mm) | M1 | E2(mm) | M2 |
| OKSB.1010.M408.M404 | 10 | 10 | 8 | 4 | 4 | 4 |
| OKSB.1015.M408.M404 | 10 | 15 | 8 | 4 | 4 | 4 |
| OKSB.1020.M408.M404 | 10 | 20 | 8 | 4 | 4 | 4 |
| OKSB.1510.M410.M404 | 15 | 10 | 10 | 4 | 4 | 4 |
| OKSB.1515.M410.M404 | 15 | 15 | 10 | 4 | 4 | 4 |
| OKSB.1520.M410.M404 | 15 | 20 | 10 | 4 | 4 | 4 |
| OKSB.1530.M410.M404 | 15 | 30 | 10 | 4 | 4 | 4 |
| OKSB.1610.M410.M404 | 16 | 10 | 10 | 4 | 4 | 4 |
| OKSB.1625.M410.M404 | 16 | 25 | 10 | 4 | 4 | 4 |
| OKSB.20135.M615.M606 | 20 | 13,5 | 15 | 6 | 6 | 6 |
| OKSB.2015.M615.M606 | 20 | 15 | 15 | 6 | 6 | 6 |
| OKSB.2020.M615.M606 | 20 | 20 | 15 | 6 | 6 | 6 |
| OKSB.2025.M615.M606 | 20 | 25 | 15 | 6 | 6 | 6 |
| OKSB.2030.M615.M606 | 20 | 30 | 15 | 6 | 6 | 6 |
| OKSB.2514.M618.M606 | 25 | 14 | 18 | 6 | 6 | 6 |
| OKSB.2515.M618.M606 | 25 | 15 | 18 | 6 | 6 | 6 |
| OKSB.2519.M618.M606 | 25 | 19 | 18 | 6 | 6 | 6 |
| OKSB.2520.M618.M606 | 25 | 20 | 18 | 6 | 6 | 6 |
| OKSB.2522.M618.M606 | 25 | 22 | 18 | 6 | 6 | 6 |
| OKSB.2525.M618.M606 | 25 | 25 | 18 | 6 | 6 | 6 |
| OKSB.2530.M618.M606 | 25 | 30 | 18 | 6 | 6 | 6 |
| OKSB.2540.M618.M606 | 25 | 40 | 18 | 6 | 6 | 6 |
| OKSB.2514.M820.M808 | 25 | 14 | 20 | 8 | 8 | 8 |
| OKSB.2515.M820.M808 | 25 | 15 | 20 | 8 | 8 | 8 |
| OKSB.2519.M820.M808 | 25 | 19 | 20 | 8 | 8 | 8 |
| OKSB.2520.M820.M808 | 25 | 20 | 20 | 8 | 8 | 8 |
| OKSB.2522.M820.M808 | 25 | 22 | 20 | 8 | 8 | 8 |
| OKSB.2525.M820.M808 | 25 | 25 | 20 | 8 | 8 | 8 |
| OKSB.2530.M820.M808 | 25 | 30 | 20 | 8 | 8 | 8 |
| OKSB.2540.M820.M808 | 25 | 40 | 20 | 8 | 8 | 8 |
| OKSB.2822.M618.M606 | 28 | 22 | 18 | 6 | 6 | 6 |
| OKSB.2822.M820.M808 | 28 | 22 | 20 | 8 | 8 | 8 |
| OKSB.3015.M820.M808 | 30 | 15 | 20 | 8 | 8 | 8 |
| OKSB.3020.M820.M808 | 30 | 20 | 20 | 8 | 8 | 8 |
| OKSB.3025.M820.M808 | 30 | 25 | 20 | 8 | 8 | 8 |
| OKSB.3030.M820.M808 | 30 | 30 | 20 | 8 | 8 | 8 |
| OKSB.3040.M820.M808 | 30 | 40 | 20 | 8 | 8 | 8 |
| OKSB.3015.M823.M808 | 30 | 15 | 23 | 8 | 8 | 8 |
| OKSB.3016.M823.M808 | 30 | 16 | 23 | 8 | 8 | 8 |
| OKSB.3020.M823.M808 | 30 | 20 | 23 | 8 | 8 | 8 |
| OKSB.3025.M823.M808 | 30 | 25 | 23 | 8 | 8 | 8 |
| OKSB.3030.M823.M808 | 30 | 30 | 23 | 8 | 8 | 8 |
| OKSB.3040.M823.M808 | 30 | 40 | 23 | 8 | 8 | 8 |
| OKSB.4015.M820.M808 | 40 | 15 | 20 | 8 | 8 | 8 |
| OKSB.4018.M820.M808 | 40 | 18 | 20 | 8 | 8 | 8 |
| OKSB.4020.M820.M808 | 40 | 20 | 20 | 8 | 8 | 8 |
| OKSB.4025.M820.M808 | 40 | 25 | 20 | 8 | 8 | 8 |
| OKSB.4028.M820.M808 | 40 | 28 | 20 | 8 | 8 | 8 |
| OKSB.4030.M820.M808 | 40 | 30 | 20 | 8 | 8 | 8 |
| OKSB.4032.M820.M808 | 40 | 32 | 20 | 8 | 8 | 8 |
| OKSB.4035.M820.M808 | 40 | 35 | 20 | 8 | 8 | 8 |
| OKSB.4040.M820.M808 | 40 | 40 | 20 | 8 | 8 | 8 |
| OKSB.4045.M820.M808 | 40 | 45 | 20 | 8 | 8 | 8 |
| OKSB.4015.M823.M808 | 40 | 15 | 23 | 8 | 8 | 8 |
| OKSB.4018.M823.M808 | 40 | 18 | 23 | 8 | 8 | 8 |
| OKSB.4020.M823.M808 | 40 | 20 | 23 | 8 | 8 | 8 |
| OKSB.4025.M823.M808 | 40 | 25 | 23 | 8 | 8 | 8 |
| OKSB.4028.M823.M808 | 40 | 28 | 23 | 8 | 8 | 8 |
| OKSB.4030.M823.M808 | 40 | 30 | 23 | 8 | 8 | 8 |
| OKSB.4032.M823.M808 | 40 | 32 | 23 | 8 | 8 | 8 |
| OKSB.4035.M823.M808 | 40 | 35 | 23 | 8 | 8 | 8 |
| OKSB.4040.M823.M808 | 40 | 40 | 23 | 8 | 8 | 8 |
| OKSB.4045.M823.M808 | 40 | 45 | 23 | 8 | 8 | 8 |
| OKSB.4018.M1025.M1010 | 40 | 18 | 25 | 10 | 10 | 10 |
| OKSB.4020.M1025.M1010 | 40 | 20 | 25 | 10 | 10 | 10 |
| OKSB.4025.M1025.M1010 | 40 | 25 | 25 | 10 | 10 | 10 |
| OKSB.4028.M1025.M1010 | 40 | 28 | 25 | 10 | 10 | 10 |
| OKSB.4030.M1025.M1010 | 40 | 30 | 25 | 10 | 10 | 10 |
| OKSB.4032.M1025.M1010 | 40 | 32 | 25 | 10 | 10 | 10 |
| OKSB.4035.M1025.M1010 | 40 | 35 | 25 | 10 | 10 | 10 |
| OKSB.4040.M1025.M1010 | 40 | 40 | 25 | 10 | 10 | 10 |
| OKSB.4045.M1025.M1010 | 40 | 45 | 25 | 10 | 10 | 10 |
| OKSB.5017.M823.M808 | 50 | 17 | 23 | 8 | 8 | 8 |
| OKSB.5020.M823.M808 | 50 | 20 | 23 | 8 | 8 | 8 |
| OKSB.5025.M823.M808 | 50 | 25 | 23 | 8 | 8 | 8 |
| OKSB.5030.M823.M808 | 50 | 30 | 23 | 8 | 8 | 8 |
| OKSB.5035.M823.M808 | 50 | 35 | 23 | 8 | 8 | 8 |
| OKSB.5040.M823.M808 | 50 | 40 | 23 | 8 | 8 | 8 |
| OKSB.5045.M823.M808 | 50 | 45 | 23 | 8 | 8 | 8 |
| OKSB.5050.M823.M808 | 50 | 50 | 23 | 8 | 8 | 8 |
| OKSB.5060.M823.M808 | 50 | 60 | 23 | 8 | 8 | 8 |
| OKSB.5017.M1025.M1010 | 50 | 17 | 25 | 10 | 10 | 10 |
| OKSB.5020.M1025.M1010 | 50 | 20 | 25 | 10 | 10 | 10 |
| OKSB.5025.M1025.M1010 | 50 | 25 | 25 | 10 | 10 | 10 |
| OKSB.5030.M1025.M1010 | 50 | 30 | 25 | 10 | 10 | 10 |
| OKSB.5035.M1025.M1010 | 50 | 35 | 25 | 10 | 10 | 10 |
| OKSB.5040.M1025.M1010 | 50 | 40 | 25 | 10 | 10 | 10 |
| OKSB.5045.M1025.M1010 | 50 | 45 | 25 | 10 | 10 | 10 |
| OKSB.5050.M1025.M1010 | 50 | 50 | 25 | 10 | 10 | 10 |
| OKSB.5060.M1025.M1010 | 50 | 60 | 25 | 10 | 10 | 10 |
| OKSB.5017.M1027.M1010 | 50 | 17 | 27 | 10 | 10 | 10 |
| OKSB.5020.M1027.M1010 | 50 | 20 | 27 | 10 | 10 | 10 |
| OKSB.5025.M1027.M1010 | 50 | 25 | 27 | 10 | 10 | 10 |
| OKSB.5030.M1027.M1010 | 50 | 30 | 27 | 10 | 10 | 10 |
| OKSB.5035.M1027.M1010 | 50 | 35 | 27 | 10 | 10 | 10 |
| OKSB.5040.M1027.M1010 | 50 | 40 | 27 | 10 | 10 | 10 |
| OKSB.5045.M1027.M1010 | 50 | 45 | 27 | 10 | 10 | 10 |
| OKSB.5050.M1027.M1010 | 50 | 50 | 27 | 10 | 10 | 10 |
| OKSB.5060.M1027.M1010 | 50 | 60 | 27 | 10 | 10 | 10 |
| OKSB.5020.M1237.M1212 | 50 | 20 | 37 | 12 | 12 | 12 |
| OKSB.5025.M1237.M1212 | 50 | 25 | 37 | 12 | 12 | 12 |
| OKSB.5030.M1237.M1212 | 50 | 30 | 37 | 12 | 12 | 12 |
| OKSB.5035.M1237.M1212 | 50 | 35 | 37 | 12 | 12 | 12 |
| OKSB.5040.M1237.M1212 | 50 | 40 | 37 | 12 | 12 | 12 |
| OKSB.5045.M1237.M1212 | 50 | 45 | 37 | 12 | 12 | 12 |
| OKSB.5050.M1237.M1212 | 50 | 50 | 37 | 12 | 12 | 12 |
| OKSB.5060.M1237.M1212 | 50 | 60 | 37 | 12 | 12 | 12 |
| OKSB.6020.M1025.M1010 | 60 | 20 | 25 | 10 | 10 | 10 |
| OKSB.6025.M1025.M1010 | 60 | 25 | 25 | 10 | 10 | 10 |
| OKSB.6030.M1025.M1010 | 60 | 30 | 25 | 10 | 10 | 10 |
| OKSB.60315.M1025.M1010 | 60 | 31,5 | 25 | 10 | 10 | 10 |
| OKSB.6035.M1025.M1010 | 60 | 35 | 25 | 10 | 10 | 10 |
| OKSB.6036.M1025.M1010 | 60 | 36 | 25 | 10 | 10 | 10 |
| OKSB.6040.M1025.M1010 | 60 | 40 | 25 | 10 | 10 | 10 |
| OKSB.6045.M1025.M1010 | 60 | 45 | 25 | 10 | 10 | 10 |
| OKSB.6050.M1025.M1010 | 60 | 50 | 25 | 10 | 10 | 10 |
| OKSB.6055.M1025.M1010 | 60 | 55 | 25 | 10 | 10 | 10 |
| OKSB.6060.M1025.M1010 | 60 | 60 | 25 | 10 | 10 | 10 |
| OKSB.6020.M1237.M1212 | 60 | 20 | 37 | 12 | 12 | 12 |
| OKSB.6025.M1237.M1212 | 60 | 25 | 37 | 12 | 12 | 12 |
| OKSB.6030.M1237.M1212 | 60 | 30 | 37 | 12 | 12 | 12 |
| OKSB.60315.M1237.M1212 | 60 | 31,5 | 37 | 12 | 12 | 12 |
| OKSB.6035.M1237.M1212 | 60 | 35 | 37 | 12 | 12 | 12 |
| OKSB.6036.M1237.M1212 | 60 | 36 | 37 | 12 | 12 | 12 |
| OKSB.6040.M1237.M1212 | 60 | 40 | 37 | 12 | 12 | 12 |
| OKSB.6045.M1237.M1212 | 60 | 45 | 37 | 12 | 12 | 12 |
| OKSB.6050.M1237.M1212 | 60 | 50 | 37 | 12 | 12 | 12 |
| OKSB.6055.M1237.M1212 | 60 | 55 | 37 | 12 | 12 | 12 |
| OKSB.6060.M1237.M1212 | 60 | 60 | 37 | 12 | 12 | 12 |
| OKSB.7020.M1025.M1010 | 70 | 20 | 25 | 10 | 10 | 10 |
| OKSB.7030.M1025.M1010 | 70 | 30 | 25 | 10 | 10 | 10 |
| OKSB.7035.M1025.M1010 | 70 | 35 | 25 | 10 | 10 | 10 |
| OKSB.7040.M1025.M1010 | 70 | 40 | 25 | 10 | 10 | 10 |
| OKSB.7045.M1025.M1010 | 70 | 45 | 25 | 10 | 10 | 10 |
| OKSB.7050.M1025.M1010 | 70 | 50 | 25 | 10 | 10 | 10 |
| OKSB.7060.M1025.M1010 | 70 | 60 | 25 | 10 | 10 | 10 |
| OKSB.7070.M1025.M1010 | 70 | 70 | 25 | 10 | 10 | 10 |
| OKSB.7020.M1237.M1212 | 70 | 20 | 37 | 12 | 12 | 12 |
| OKSB.7030.M1237.M1212 | 70 | 30 | 37 | 12 | 12 | 12 |
| OKSB.7035.M1237.M1212 | 70 | 35 | 37 | 12 | 12 | 12 |
| OKSB.7040.M1237.M1212 | 70 | 40 | 37 | 12 | 12 | 12 |
| OKSB.7045.M1237.M1212 | 70 | 45 | 37 | 12 | 12 | 12 |
| OKSB.7050.M1237.M1212 | 70 | 50 | 37 | 12 | 12 | 12 |
| OKSB.7060.M1237.M1212 | 70 | 60 | 37 | 12 | 12 | 12 |
| OKSB.7070.M1237.M1212 | 70 | 60 | 37 | 12 | 12 | 12 |
| OKSB.7520.M1025.M1010 | 75 | 20 | 25 | 10 | 10 | 10 |
| OKSB.7525.M1025.M1010 | 75 | 25 | 25 | 10 | 10 | 10 |
| OKSB.7530.M1025.M1010 | 75 | 30 | 25 | 10 | 10 | 10 |
| OKSB.7540.M1025.M1010 | 75 | 40 | 25 | 10 | 10 | 10 |
| OKSB.7545.M1025.M1010 | 75 | 45 | 25 | 10 | 10 | 10 |
| OKSB.7550.M1025.M1010 | 75 | 50 | 25 | 10 | 10 | 10 |
| OKSB.7555.M1025.M1010 | 75 | 55 | 25 | 10 | 10 | 10 |
| OKSB.7560.M1025.M1010 | 75 | 60 | 25 | 10 | 10 | 10 |
| OKSB.7575.M1025.M1010 | 75 | 75 | 25 | 10 | 10 | 10 |
| OKSB.7520.M1237.M1212 | 75 | 20 | 37 | 12 | 12 | 12 |
| OKSB.7525.M1237.M1212 | 75 | 25 | 37 | 12 | 12 | 12 |
| OKSB.7530.M1237.M1212 | 75 | 30 | 37 | 12 | 12 | 12 |
| OKSB.7540.M1237.M1212 | 75 | 40 | 37 | 12 | 12 | 12 |
| OKSB.7545.M1237.M1212 | 75 | 45 | 37 | 12 | 12 | 12 |
| OKSB.7550.M1237.M1212 | 75 | 50 | 37 | 12 | 12 | 12 |
| OKSB.7555.M1237.M1212 | 75 | 55 | 37 | 12 | 12 | 12 |
| OKSB.7560.M1237.M1212 | 75 | 60 | 37 | 12 | 12 | 12 |
| OKSB.7575.M1237.M1212 | 75 | 75 | 37 | 12 | 12 | 12 |
| OKSB.8040.M1237.M1212 | 80 | 40 | 37 | 12 | 12 | 12 |
| OKSB.8050.M1237.M1212 | 80 | 50 | 37 | 12 | 12 | 12 |
| OKSB.8055.M1237.M1212 | 80 | 55 | 37 | 12 | 12 | 12 |
| OKSB.8040.M1437.M1414 | 80 | 40 | 37 | 14 | 14 | 14 |
| OKSB.8050.M1437.M1414 | 80 | 50 | 37 | 14 | 14 | 14 |
| OKSB.8055.M1437.M1414 | 80 | 55 | 37 | 14 | 14 | 14 |
| OKSB.10030.M1642.M1616 | 100 | 30 | 42 | 16 | 16 | 16 |
| OKSB.10040.M1642.M1616 | 100 | 40 | 42 | 16 | 16 | 16 |
| OKSB.10050.M1642.M1616 | 100 | 50 | 42 | 16 | 16 | 16 |
| OKSB.10055.M1642.M1616 | 100 | 55 | 42 | 16 | 16 | 16 |
| OKSB.10060.M1642.M1616 | 100 | 60 | 42 | 16 | 16 | 16 |
| OKSB.10075.M1642.M1616 | 100 | 75 | 42 | 16 | 16 | 16 |
| OKSB.12060.M1642.M1616 | 120 | 60 | 42 | 16 | 16 | 16 |
| OKSB.15050.M1646.M1616 | 150 | 50 | 46 | 16 | 16 | 16 |
| OKSB.15055.M1646.M1616 | 150 | 55 | 46 | 16 | 16 | 16 |
| OKSB.15060.M1646.M1616 | 150 | 60 | 46 | 16 | 16 | 16 |
| OKSB.150100.M1646.M1616 | 150 | 100 | 46 | 16 | 16 | 16 |
| OKSB.15050.M2046.M2020 | 150 | 50 | 46 | 20 | 20 | 20 |
| OKSB.15055.M2046.M2020 | 150 | 55 | 46 | 20 | 20 | 20 |
| OKSB.15060.M2046.M2020 | 150 | 60 | 46 | 20 | 20 | 20 |
| OKSB.150100.M2046.M2020 | 150 | 100 | 46 | 20 | 20 | 20 |
