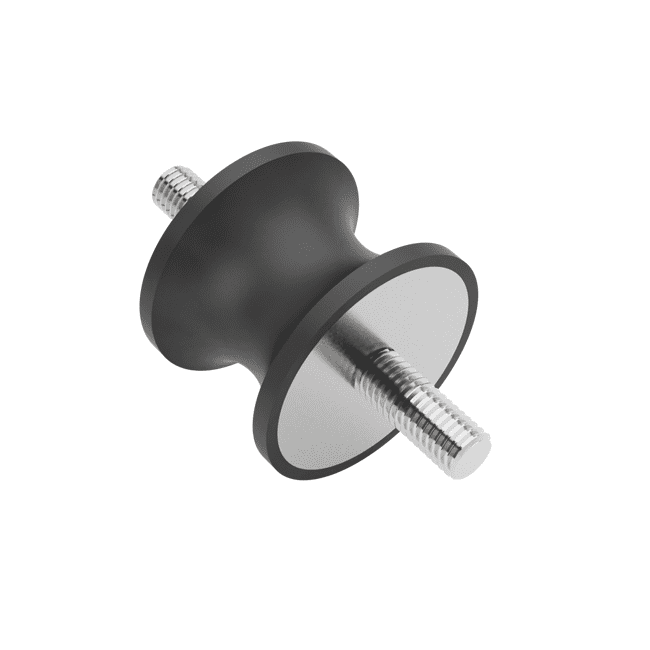

OKSAT Cylindrical Vibration Mount (Type AT)
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

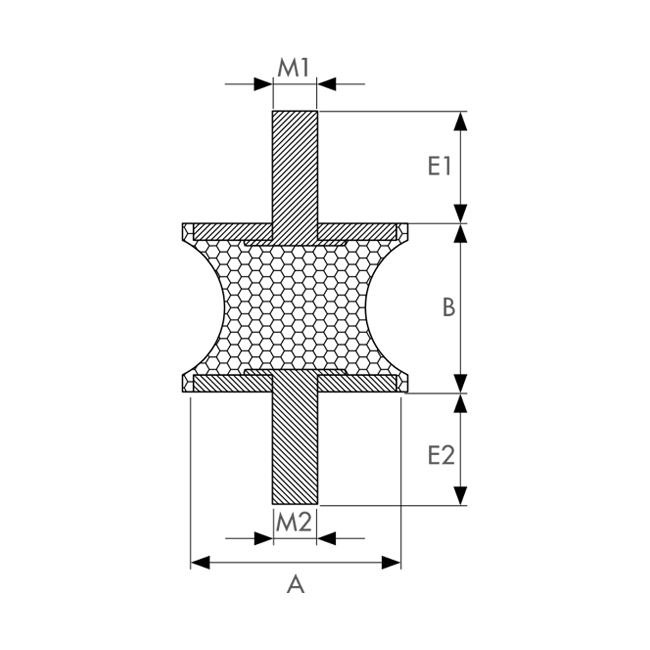

| Dış Çap | Yükseklik | Civ. Boyu 1 | Metrik | Civ. Boyu 2 | Metrik | |
|---|---|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Bolt Lenght 1 | Metric | Bolt Lenght 2 | Metric |
| Product Code | A (mm) | B (mm) | E1 (mm) | M1 | E2 (mm) | M2 |
| OKSAT.2019.M615.M615 | 20 | 19 | 15 | 6 | 15 | 6 |
| OKSAT.2520.M618.M618 | 25 | 20 | 18 | 6 | 18 | 6 |
| OKSAT.2525.M618.M618 | 25 | 25 | 18 | 6 | 18 | 6 |
| OKSAT.3015.M820.M820 | 30 | 15 | 20 | 8 | 20 | 8 |
| OKSAT.3018.M820.M820 | 30 | 18 | 20 | 8 | 20 | 8 |
| OKSAT.3020.M820.M820 | 30 | 20 | 20 | 8 | 20 | 8 |
| OKSAT.3025.M820.M820 | 30 | 25 | 20 | 8 | 20 | 8 |
| OKSAT.317525.M820.M820 | 31,75 | 25 | 20 | 8 | 20 | 8 |
| OKSAT.4030.M820.M820 | 40 | 30 | 20 | 8 | 20 | 8 |
| OKSAT.4048.M820.M820 | 40 | 48 | 20 | 8 | 20 | 8 |
| OKSAT.5030.M1027.M1027 | 50 | 30 | 27 | 10 | 27 | 10 |
| OKSAT.8060.M1232.M1232 | 80 | 60 | 32 | 12 | 32 | 12 |
| OKSAT.8060.M1432.M1432 | 80 | 60 | 37 | 14 | 37 | 14 |
| OKSAT.8065.M1232.M1232 | 80 | 65 | 32 | 12 | 32 | 12 |
| OKSAT.8065.M1432.M1432 | 80 | 65 | 37 | 14 | 37 | 14 |
| OKSAT.11060.M1437.M1437 | 110 | 60 | 37 | 14 | 37 | 14 |
| OKSAT.12060.M1642.M1642 | 120 | 60 | 42 | 16 | 42 | 16 |
