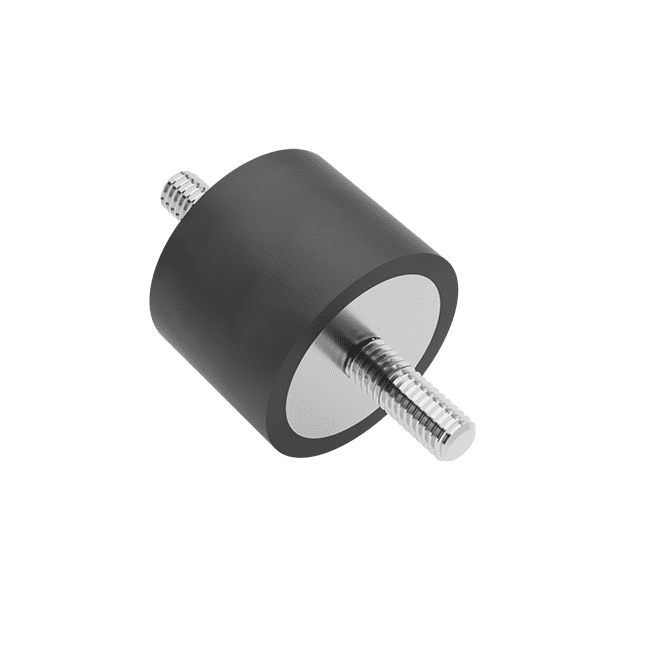

OKSA Cylindrical Vibration Mount (Type A)
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.
| Dış Çap | Yükseklik | Civ. Boyu 1 | Metrik | Civ. Boyu 2 | Metrik | |
|---|---|---|---|---|---|---|
| Ürün Kodu | Outer Diameter | Height | Bolt Length 1 | Metric | Bolt Length 2 | Metric |
| Product Code | A (mm) | B (mm) | E1 (mm) | M1 | E2 (mm) | M2 |
| OKSA.1008.M408.M408 | 10 | 8 | 8 | 4 | 8 | 4 |
| OKSA.1010.M408.M408 | 10 | 10 | 8 | 4 | 8 | 4 |
| OKSA.1015.M408.M408 | 10 | 15 | 8 | 4 | 8 | 4 |
| OKSA.1020.M408.M408 | 10 | 20 | 8 | 4 | 8 | 4 |
| OKSA.1505.M410.M410 | 15 | 5 | 10 | 4 | 10 | 4 |
| OKSA.1508.M410.M410 | 15 | 8 | 10 | 4 | 10 | 4 |
| OKSA.1510.M410.M410 | 15 | 10 | 10 | 4 | 10 | 4 |
| OKSA.1515.M410.M410 | 15 | 15 | 10 | 4 | 10 | 4 |
| OKSA.1520.M410.M410 | 15 | 20 | 10 | 4 | 10 | 4 |
| OKSA.1530.M410.M410 | 15 | 30 | 10 | 4 | 10 | 4 |
| OKSA.1610.M410.M410 | 16 | 10 | 10 | 4 | 10 | 4 |
| OKSA.1625.M410.M410 | 16 | 25 | 10 | 4 | 10 | 4 |
| OKSA.18055.M615.M615 | 18 | 5,5 | 15 | 6 | 15 | 6 |
| OKSA.18085.M615.M615 | 18 | 8,5 | 15 | 6 | 15 | 6 |
| OKSA.2005.M615.M615 | 20 | 5 | 15 | 6 | 15 | 6 |
| OKSA.2008.M615.M615 | 20 | 8 | 15 | 6 | 15 | 6 |
| OKSA.2010.M615.M615 | 20 | 10 | 15 | 6 | 15 | 6 |
| OKSA.20135.M615.M615 | 20 | 13,5 | 15 | 6 | 15 | 6 |
| OKSA.2015.M615.M615 | 20 | 15 | 15 | 6 | 15 | 6 |
| OKSA.2020.M615.M615 | 20 | 20 | 15 | 6 | 15 | 6 |
| OKSA.2025.M615.M615 | 20 | 25 | 15 | 6 | 15 | 6 |
| OKSA.2030.M615.M615 | 20 | 30 | 15 | 6 | 15 | 6 |
| OKSA.2508.M618.M618 | 25 | 8 | 18 | 6 | 18 | 6 |
| OKSA.2510.M618.M618 | 25 | 10 | 18 | 6 | 18 | 6 |
| OKSA.2514.M618.M618 | 25 | 14 | 18 | 6 | 18 | 6 |
| OKSA.2515.M618.M618 | 25 | 15 | 18 | 6 | 18 | 6 |
| OKSA.2519.M618.M618 | 25 | 19 | 18 | 6 | 18 | 6 |
| OKSA.2520.M618.M618 | 25 | 20 | 18 | 6 | 18 | 6 |
| OKSA.2522.M618.M618 | 25 | 22 | 18 | 6 | 18 | 6 |
| OKSA.2525.M618.M618 | 25 | 25 | 18 | 6 | 18 | 6 |
| OKSA.2530.M618.M618 | 25 | 30 | 18 | 6 | 18 | 6 |
| OKSA.2540.M618.M618 | 25 | 40 | 18 | 6 | 18 | 6 |
| OKSA.2508.M820.M820 | 25 | 8 | 20 | 8 | 20 | 8 |
| OKSA.2510.M820.M820 | 25 | 10 | 20 | 8 | 20 | 8 |
| OKSA.2514.M820.M820 | 25 | 14 | 20 | 8 | 20 | 8 |
| OKSA.2515.M820.M820 | 25 | 15 | 20 | 8 | 20 | 8 |
| OKSA.2519.M820.M820 | 25 | 19 | 20 | 8 | 20 | 8 |
| OKSA.2520.M820.M820 | 25 | 20 | 20 | 8 | 20 | 8 |
| OKSA.2522.M820.M820 | 25 | 22 | 20 | 8 | 20 | 8 |
| OKSA.2525.M820.M820 | 25 | 25 | 20 | 8 | 20 | 8 |
| OKSA.2530.M820.M820 | 25 | 30 | 20 | 8 | 20 | 8 |
| OKSA.2540.M820.M820 | 25 | 40 | 20 | 8 | 20 | 8 |
| OKSA.2822.M618.M618 | 28 | 22 | 18 | 6 | 18 | 6 |
| OKSA.2822.M820.M820 | 28 | 22 | 20 | 8 | 20 | 8 |
| OKSA.3010.M820.M820 | 30 | 10 | 20 | 8 | 20 | 8 |
| OKSA.3012.M820.M820 | 30 | 12 | 20 | 8 | 20 | 8 |
| OKSA.3015.M820.M820 | 30 | 15 | 20 | 8 | 20 | 8 |
| OKSA.3020.M820.M820 | 30 | 20 | 20 | 8 | 20 | 8 |
| OKSA.3025.M820.M820 | 30 | 25 | 20 | 8 | 20 | 8 |
| OKSA.3030.M820.M820 | 30 | 30 | 20 | 8 | 20 | 8 |
| OKSA.3040.M820.M820 | 30 | 40 | 20 | 8 | 20 | 8 |
| OKSA.3010.M823.M823 | 30 | 10 | 23 | 8 | 23 | 8 |
| OKSA.3012.M823.M823 | 30 | 12 | 23 | 8 | 23 | 8 |
| OKSA.3015.M823.M823 | 30 | 15 | 23 | 8 | 23 | 8 |
| OKSA.3020.M823.M823 | 30 | 20 | 23 | 8 | 23 | 8 |
| OKSA.3025.M823.M823 | 30 | 25 | 23 | 8 | 23 | 8 |
| OKSA.3030.M823.M823 | 30 | 30 | 23 | 8 | 23 | 8 |
| OKSA.3040.M823.M823 | 30 | 40 | 23 | 8 | 23 | 8 |
| OKSA.4015.M820.M820 | 40 | 15 | 20 | 8 | 20 | 8 |
| OKSA.4018.M820.M820 | 40 | 18 | 20 | 8 | 20 | 8 |
| OKSA.4020.M820.M820 | 40 | 20 | 20 | 8 | 20 | 8 |
| OKSA.4025.M820.M820 | 40 | 25 | 20 | 8 | 20 | 8 |
| OKSA.4028.M820.M820 | 40 | 28 | 20 | 8 | 20 | 8 |
| OKSA.4030.M820.M820 | 40 | 30 | 20 | 8 | 20 | 8 |
| OKSA.4032.M820.M820 | 40 | 32 | 20 | 8 | 20 | 8 |
| OKSA.4035.M820.M820 | 40 | 35 | 20 | 8 | 20 | 8 |
| OKSA.4040.M820.M820 | 40 | 40 | 20 | 8 | 20 | 8 |
| OKSA.4045.M820.M820 | 40 | 45 | 20 | 8 | 20 | 8 |
| OKSA.4015.M823.M823 | 40 | 15 | 23 | 8 | 23 | 8 |
| OKSA.4018.M823.M823 | 40 | 18 | 23 | 8 | 23 | 8 |
| OKSA.4020.M823.M823 | 40 | 20 | 23 | 8 | 23 | 8 |
| OKSA.4025.M823.M823 | 40 | 25 | 23 | 8 | 23 | 8 |
| OKSA.4028.M823.M823 | 40 | 28 | 23 | 8 | 23 | 8 |
| OKSA.4030.M823.M823 | 40 | 30 | 23 | 8 | 23 | 8 |
| OKSA.4032.M823.M823 | 40 | 32 | 23 | 8 | 23 | 8 |
| OKSA.4035.M823.M823 | 40 | 35 | 23 | 8 | 23 | 8 |
| OKSA.4040.M823.M823 | 40 | 40 | 23 | 8 | 23 | 8 |
| OKSA.4045.M823.M823 | 40 | 45 | 23 | 8 | 23 | 8 |
| OKSA.4015.M1025.M1025 | 40 | 15 | 25 | 10 | 25 | 10 |
| OKSA.4018.M1025.M1025 | 40 | 18 | 25 | 10 | 25 | 10 |
| OKSA.4020.M1025.M1025 | 40 | 20 | 25 | 10 | 25 | 10 |
| OKSA.4025.M1025.M1025 | 40 | 25 | 25 | 10 | 25 | 10 |
| OKSA.4028.M1025.M1025 | 40 | 28 | 25 | 10 | 25 | 10 |
| OKSA.4030.M1025.M1025 | 40 | 30 | 25 | 10 | 25 | 10 |
| OKSA.4032.M1025.M1025 | 40 | 32 | 25 | 10 | 25 | 10 |
| OKSA.4035.M1025.M1025 | 40 | 35 | 25 | 10 | 25 | 10 |
| OKSA.4040.M1025.M1025 | 40 | 40 | 25 | 10 | 25 | 10 |
| OKSA.4045.M1025.M1025 | 40 | 45 | 25 | 10 | 25 | 10 |
| OKSA.5015.M823.M823 | 50 | 15 | 23 | 8 | 23 | 8 |
| OKSA.5017.M823.M823 | 50 | 17 | 23 | 8 | 23 | 8 |
| OKSA.5020.M823.M823 | 50 | 20 | 23 | 8 | 23 | 8 |
| OKSA.5025.M823.M823 | 50 | 25 | 23 | 8 | 23 | 8 |
| OKSA.5030.M823.M823 | 50 | 30 | 23 | 8 | 23 | 8 |
| OKSA.5035.M823.M823 | 50 | 35 | 23 | 8 | 23 | 8 |
| OKSA.5040.M823.M823 | 50 | 40 | 23 | 8 | 23 | 8 |
| OKSA.5045.M823.M823 | 50 | 45 | 23 | 8 | 23 | 8 |
| OKSA.5050.M823.M823 | 50 | 50 | 23 | 8 | 23 | 8 |
| OKSA.5060.M823.M823 | 50 | 60 | 23 | 8 | 23 | 8 |
| OKSA.5015.M1025.M1025 | 50 | 15 | 25 | 10 | 25 | 10 |
| OKSA.5017.M1025.M1025 | 50 | 17 | 25 | 10 | 25 | 10 |
| OKSA.5020.M1025.M1025 | 50 | 20 | 25 | 10 | 25 | 10 |
| OKSA.5025.M1025.M1025 | 50 | 25 | 25 | 10 | 25 | 10 |
| OKSA.5030.M1025.M1025 | 50 | 30 | 25 | 10 | 25 | 10 |
| OKSA.5035.M1025.M1025 | 50 | 35 | 25 | 10 | 25 | 10 |
| OKSA.5040.M1025.M1025 | 50 | 40 | 25 | 10 | 25 | 10 |
| OKSA.5045.M1025.M1025 | 50 | 45 | 25 | 10 | 25 | 10 |
| OKSA.5050.M1025.M1025 | 50 | 50 | 25 | 10 | 25 | 10 |
| OKSA.5060.M1025.M1025 | 50 | 60 | 25 | 10 | 25 | 10 |
| OKSA.5015.M1027.M1027 | 50 | 15 | 27 | 10 | 27 | 10 |
| OKSA.5017.M1027.M1027 | 50 | 17 | 27 | 10 | 27 | 10 |
| OKSA.5020.M1027.M1027 | 50 | 20 | 27 | 10 | 27 | 10 |
| OKSA.5025.M1027.M1027 | 50 | 25 | 27 | 10 | 27 | 10 |
| OKSA.5030.M1027.M1027 | 50 | 30 | 27 | 10 | 27 | 10 |
| OKSA.5035.M1027.M1027 | 50 | 35 | 27 | 10 | 27 | 10 |
| OKSA.5040.M1027.M1027 | 50 | 40 | 27 | 10 | 27 | 10 |
| OKSA.5045.M1027.M1027 | 50 | 45 | 27 | 10 | 27 | 10 |
| OKSA.5050.M1027.M1027 | 50 | 50 | 27 | 10 | 27 | 10 |
| OKSA.5060.M1027.M1027 | 50 | 60 | 27 | 10 | 27 | 10 |
| OKSA.5015.M1237.M1237 | 50 | 15 | 37 | 12 | 37 | 12 |
| OKSA.5017.M1237.M1237 | 50 | 17 | 37 | 12 | 37 | 12 |
| OKSA.5020.M1237.M1237 | 50 | 20 | 37 | 12 | 37 | 12 |
| OKSA.5025.M1237.M1237 | 50 | 25 | 37 | 12 | 37 | 12 |
| OKSA.5030.M1237.M1237 | 50 | 30 | 37 | 12 | 37 | 12 |
| OKSA.5035.M1237.M1237 | 50 | 35 | 37 | 12 | 37 | 12 |
| OKSA.5040.M1237.M1237 | 50 | 40 | 37 | 12 | 37 | 12 |
| OKSA.5045.M1237.M1237 | 50 | 45 | 37 | 12 | 37 | 12 |
| OKSA.5050.M1237.M1237 | 50 | 50 | 37 | 12 | 37 | 12 |
| OKSA.5060.M1237.M1237 | 50 | 60 | 37 | 12 | 37 | 12 |
| OKSA.6020.M1025.M1025 | 60 | 20 | 25 | 10 | 25 | 10 |
| OKSA.6025.M1025.M1025 | 60 | 25 | 25 | 10 | 25 | 10 |
| OKSA.6030.M1025.M1025 | 60 | 30 | 25 | 10 | 25 | 10 |
| OKSA.60315.M1025.M1025 | 60 | 31,5 | 25 | 10 | 25 | 10 |
| OKSA.6035.M1025.M1025 | 60 | 35 | 25 | 10 | 25 | 10 |
| OKSA.6036.M1025.M1025 | 60 | 36 | 25 | 10 | 25 | 10 |
| OKSA.6040.M1025.M1025 | 60 | 40 | 25 | 10 | 25 | 10 |
| OKSA.6045.M1025.M1025 | 60 | 45 | 25 | 10 | 25 | 10 |
| OKSA.6050.M1025.M1025 | 60 | 50 | 25 | 10 | 25 | 10 |
| OKSA.6055.M1025.M1025 | 60 | 55 | 25 | 10 | 25 | 10 |
| OKSA.6060.M1025.M1025 | 60 | 60 | 25 | 10 | 25 | 10 |
| OKSA.6020.M1237.M1237 | 60 | 20 | 37 | 12 | 37 | 12 |
| OKSA.6025.M1237.M1237 | 60 | 25 | 37 | 12 | 37 | 12 |
| OKSA.6030.M1237.M1237 | 60 | 30 | 37 | 12 | 37 | 12 |
| OKSA.60315.M1237.M1237 | 60 | 31,5 | 37 | 12 | 37 | 12 |
| OKSA.6035.M1237.M1237 | 60 | 35 | 37 | 12 | 37 | 12 |
| OKSA.6036.M1237.M1237 | 60 | 36 | 37 | 12 | 37 | 12 |
| OKSA.6040.M1237.M1237 | 60 | 40 | 37 | 12 | 37 | 12 |
| OKSA.6045.M1237.M1237 | 60 | 45 | 37 | 12 | 37 | 12 |
| OKSA.6050.M1237.M1237 | 60 | 50 | 37 | 12 | 37 | 12 |
| OKSA.6055.M1237.M1237 | 60 | 55 | 37 | 12 | 37 | 12 |
| OKSA.6060.M1237.M1237 | 60 | 60 | 37 | 12 | 37 | 12 |
| OKSA.7020.M1025.M1025 | 70 | 20 | 25 | 10 | 25 | 10 |
| OKSA.7030.M1025.M1025 | 70 | 30 | 25 | 10 | 25 | 10 |
| OKSA.7035.M1025.M1025 | 70 | 35 | 25 | 10 | 25 | 10 |
| OKSA.7040.M1025.M1025 | 70 | 40 | 25 | 10 | 25 | 10 |
| OKSA.7045.M1025.M1025 | 70 | 45 | 25 | 10 | 25 | 10 |
| OKSA.7050.M1025.M1025 | 70 | 50 | 25 | 10 | 25 | 10 |
| OKSA.7060.M1025.M1025 | 70 | 60 | 25 | 10 | 25 | 10 |
| OKSA.7070.M1025.M1025 | 70 | 70 | 25 | 10 | 25 | 10 |
| OKSA.7020.M1237.M1237 | 70 | 20 | 37 | 12 | 37 | 12 |
| OKSA.7030.M1237.M1237 | 70 | 30 | 37 | 12 | 37 | 12 |
| OKSA.7035.M1237.M1237 | 70 | 35 | 37 | 12 | 37 | 12 |
| OKSA.7040.M1237.M1237 | 70 | 40 | 37 | 12 | 37 | 12 |
| OKSA.7045.M1237.M1237 | 70 | 45 | 37 | 12 | 37 | 12 |
| OKSA.7050.M1237.M1237 | 70 | 50 | 37 | 12 | 37 | 12 |
| OKSA.7060.M1237.M1237 | 70 | 60 | 37 | 12 | 37 | 12 |
| OKSA.7070.M1237.M1237 | 70 | 70 | 37 | 12 | 37 | 12 |
| OKSA.7520.M1025.M1025 | 75 | 20 | 25 | 10 | 25 | 10 |
| OKSA.7525.M1025.M1025 | 75 | 25 | 25 | 10 | 25 | 10 |
| OKSA.7530.M1025.M1025 | 75 | 30 | 25 | 10 | 25 | 10 |
| OKSA.7540.M1025.M1025 | 75 | 40 | 25 | 10 | 25 | 10 |
| OKSA.7545.M1025.M1025 | 75 | 45 | 25 | 10 | 25 | 10 |
| OKSA.7550.M1025.M1025 | 75 | 50 | 25 | 10 | 25 | 10 |
| OKSA.7555.M1025.M1025 | 75 | 55 | 25 | 10 | 25 | 10 |
| OKSA.7560.M1025.M1025 | 75 | 60 | 25 | 10 | 25 | 10 |
| OKSA.7575.M1025.M1025 | 75 | 75 | 25 | 10 | 25 | 10 |
| OKSA.7520.M1237.M1237 | 75 | 20 | 37 | 12 | 37 | 12 |
| OKSA.7525.M1237.M1237 | 75 | 25 | 37 | 12 | 37 | 12 |
| OKSA.7530.M1237.M1237 | 75 | 30 | 37 | 12 | 37 | 12 |
| OKSA.7540.M1237.M1237 | 75 | 40 | 37 | 12 | 37 | 12 |
| OKSA.7545.M1237.M1237 | 75 | 45 | 37 | 12 | 37 | 12 |
| OKSA.7550.M1237.M1237 | 75 | 50 | 37 | 12 | 37 | 12 |
| OKSA.7555.M1237.M1237 | 75 | 55 | 37 | 12 | 37 | 12 |
| OKSA.7560.M1237.M1237 | 75 | 60 | 37 | 12 | 37 | 12 |
| OKSA.7575.M1237.M1237 | 75 | 75 | 37 | 12 | 37 | 12 |
| OKSA.8040.M1237.M1237 | 80 | 40 | 37 | 12 | 37 | 12 |
| OKSA.8050.M1237.M1237 | 80 | 50 | 37 | 12 | 37 | 12 |
| OKSA.8055.M1237.M1237 | 80 | 55 | 37 | 12 | 37 | 12 |
| OKSA.8040.M1437.M1437 | 80 | 40 | 37 | 14 | 37 | 14 |
| OKSA.8050.M1437.M1437 | 80 | 50 | 37 | 14 | 37 | 14 |
| OKSA.8055.M1437.M1437 | 80 | 55 | 37 | 14 | 37 | 14 |
| OKSA.10030.M1642.M1642 | 100 | 30 | 42 | 16 | 42 | 16 |
| OKSA.10040.M1642.M1642 | 100 | 40 | 42 | 16 | 42 | 16 |
| OKSA.10050.M1642.M1642 | 100 | 50 | 42 | 16 | 42 | 16 |
| OKSA.10055.M1642.M1642 | 100 | 55 | 42 | 16 | 42 | 16 |
| OKSA.10060.M1642.M1642 | 100 | 60 | 42 | 16 | 42 | 16 |
| OKSA.10075.M1642.M1642 | 100 | 75 | 42 | 16 | 42 | 16 |
| OKSA.12060.M1642.M1642 | 120 | 60 | 42 | 16 | 42 | 16 |
| OKSA.15050.M1646.M1646 | 150 | 50 | 46 | 16 | 46 | 16 |
| OKSA.15055.M1646.M1646 | 150 | 55 | 46 | 16 | 46 | 16 |
| OKSA.15060.M1646.M1646 | 150 | 60 | 46 | 16 | 46 | 16 |
| OKSA.150100.M1646.M1646 | 150 | 100 | 46 | 16 | 46 | 16 |
| OKSA.15050.M2046.M2046 | 150 | 50 | 46 | 20 | 46 | 20 |
| OKSA.15055.M2046.M2046 | 150 | 55 | 46 | 20 | 46 | 20 |
| OKSA.15060.M2046.M2046 | 150 | 60 | 46 | 20 | 46 | 20 |
| OKSA.150100.M2046.M2046 | 150 | 100 | 46 | 20 | 46 | 20 |
