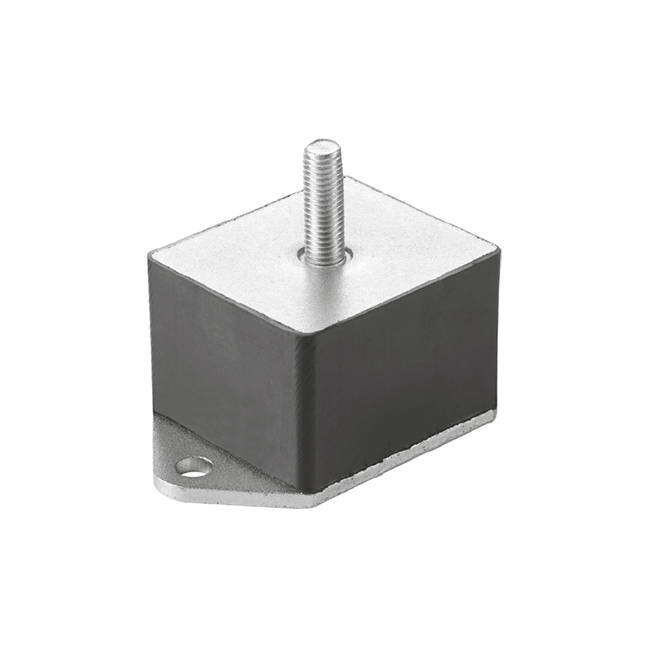

OKRL Long-Life Vibration Damper
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

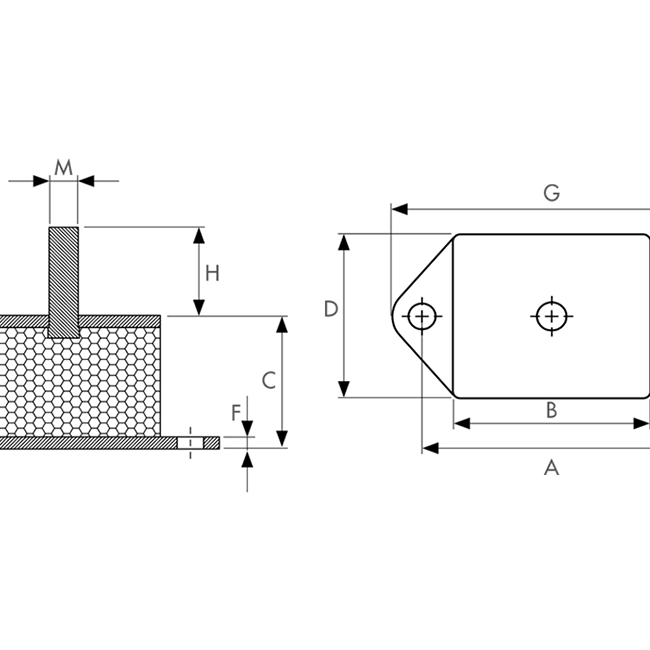

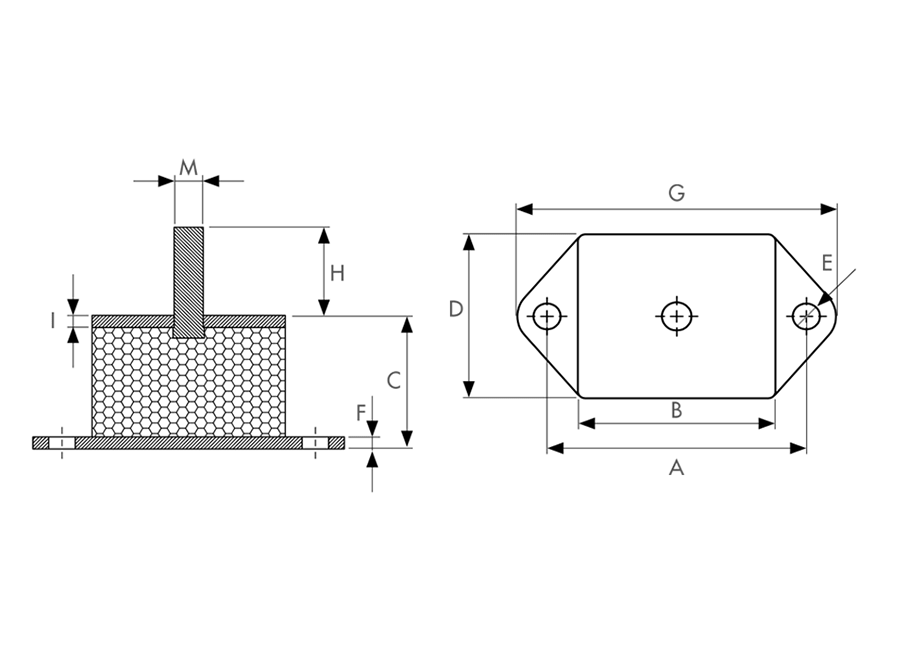

| Ürün Kodu | A | B | C | D | E | F | G | H | I | M | Max. Yük |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
Metrik Ölçüsü Metric Size |
Max. Load (Kg) |
| OKRL.001.00 | 105 | 80 | 55 | 70 | 11 | 5 | 129 | 37 | 3 | 12 | 950 |
