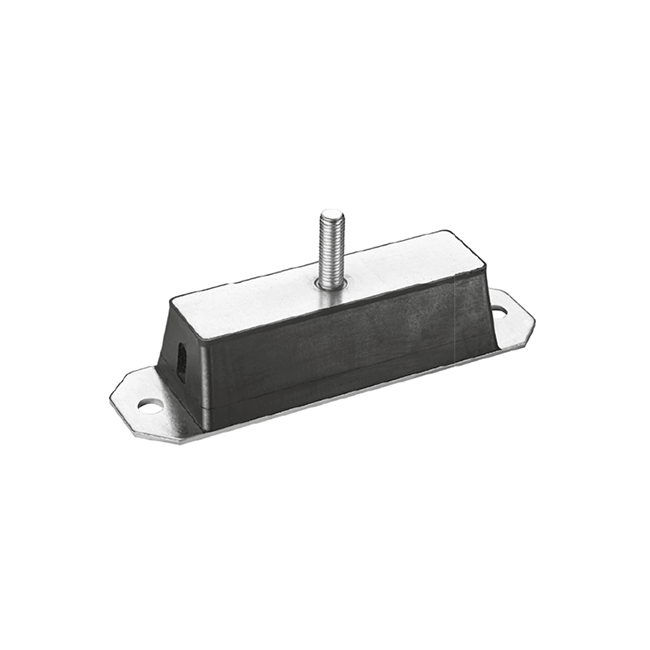

OKR Rectangular Support
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

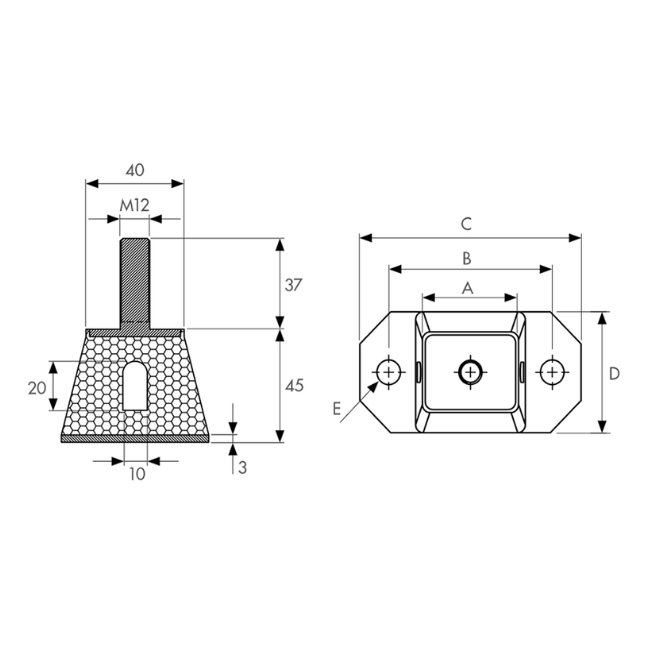

| Ürün Kodu | A | B | C | D | E | Max. Yük |
|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | (mm) | Max. Load (Kg) |
| OKR.050 | 50 | 85 | 115 | 60 | 12,25 | 500 |
| OKR.100 | 100 | 135 | 165 | 60 | 12,25 | 1200 |
| OKR.150 | 150 | 185 | 215 | 60 | 12,25 | 1400 |
| OKR.200 | 200 | 235 | 265 | 60 | 12,25 | 1600 |
