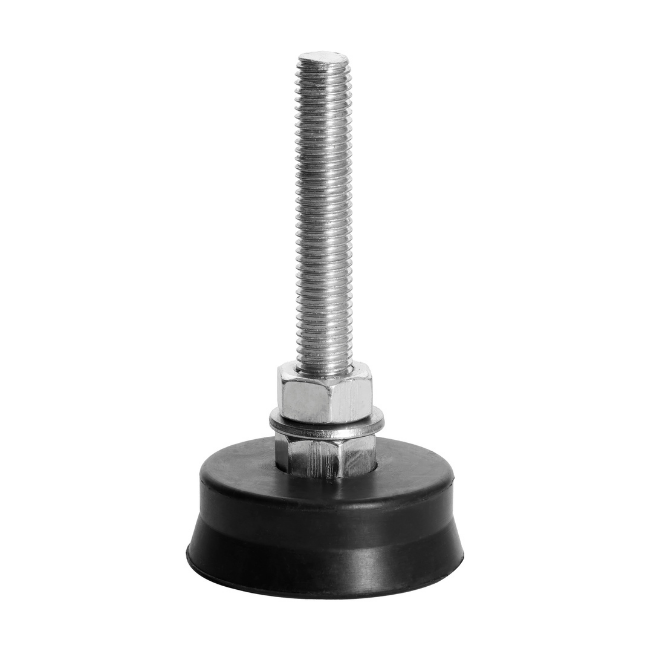

OKMT Antivibration Mount
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

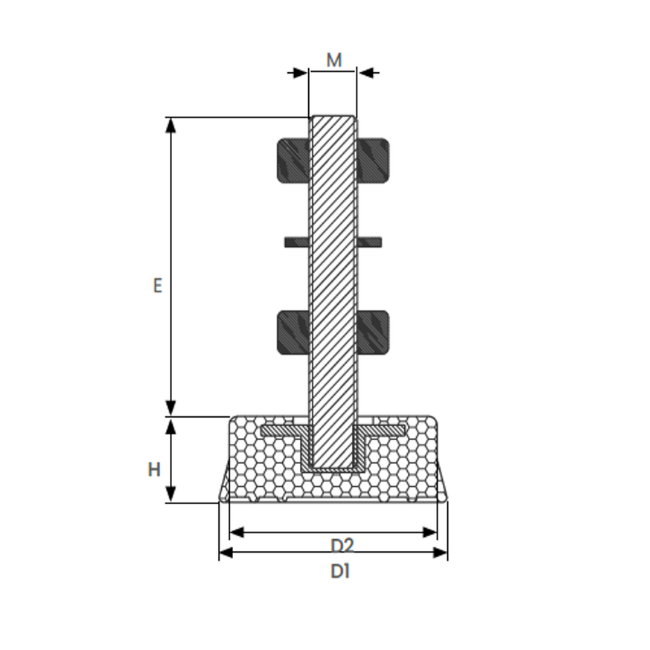

| Ürün Kodu | D1 (mm) | D2 (mm) | H (mm) | E (mm) | M - Metrik Ölçüsü |
|---|---|---|---|---|---|
| Item Code | Metric Size | ||||
| OKMT.01.01 | 47 | 40 | 20 | 40 | M8 |
| OKMT.01.02 | 57 | 52 | 20 | 70 | M10 |
