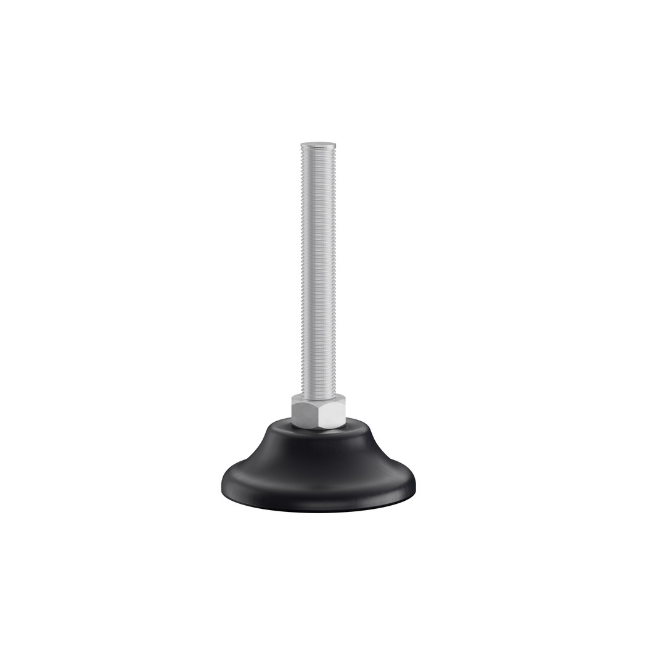

OKMLE.P.IN Stainless Steel Plastic Machine Levelling Elements

Plastic: PA6/GF30, Black

Metal: DIN EN 10111-98, Stainless steel.

Note: OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

OKMLE P IN Ürün Tablosu

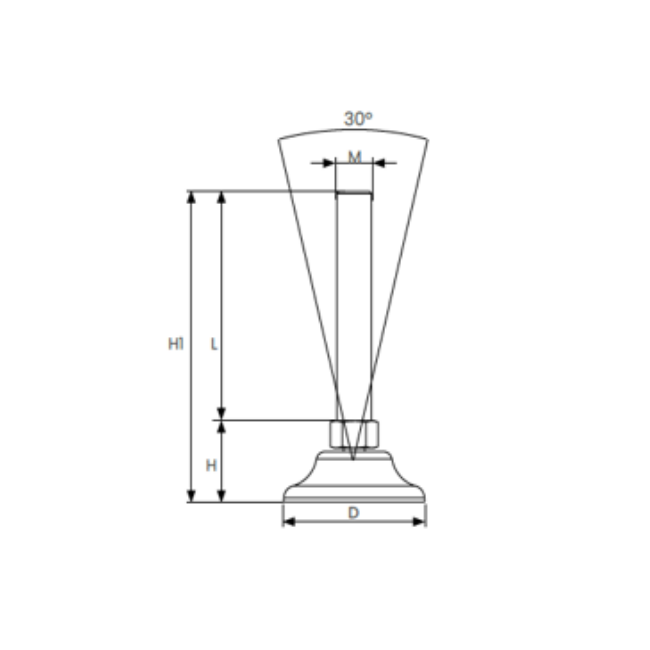

Ürün Kodu	H (mm)	L (mm)	D (mm)	Metrik Ölçüsü Metric Size	H1 (mm)	Yük Kapasitesi Kg / Adet
Item Code	H (mm)	L (mm)	D (mm)	M	H1 (mm)	Load Capacity Kg / pcs
OKMLE.P.IN.040.M825	27	25	40	M8	52	1.000
OKMLE.P.IN.040.M850	27	50	40	M8	77	1.000
OKMLE.P.IN.040.M875	27	75	40	M8	102	1.000
OKMLE.P.IN.040.M8100	27	100	40	M8	127	1.000
OKMLE.P.IN.040.M1025	27	25	40	M10	52	1.000
OKMLE.P.IN.040.M1050	27	50	40	M10	77	1.000
OKMLE.P.IN.040.M1075	27	75	40	M10	102	1.000
OKMLE.P.IN.040.M10100	27	100	40	M10	127	1.000
OKMLE.P.IN.040.M10125	27	125	40	M10	152	1.000
OKMLE.P.IN.040.M1225	27	25	40	M12	52	1.000
OKMLE.P.IN.040.M1250	27	50	40	M12	77	1.000
OKMLE.P.IN.040.M1275	27	75	40	M12	102	1.000
OKMLE.P.IN.040.M12100	27	100	40	M12	127	1.000
OKMLE.P.IN.050.M1025	31	25	50	M10	56	1.250
OKMLE.P.IN.050.M1050	31	50	50	M10	81	1.250
OKMLE.P.IN.050.M1075	31	75	50	M10	106	1.250
OKMLE.P.IN.050.M10100	31	100	50	M10	131	1.250
OKMLE.P.IN.050.M10125	31	125	50	M10	156	1.250
OKMLE.P.IN.050.M1225	31	25	50	M12	56	1.250
OKMLE.P.IN.050.M1250	31	50	50	M12	81	1.250
OKMLE.P.IN.050.M1275	31	75	50	M12	106	1.250
OKMLE.P.IN.050.M12100	31	100	50	M12	131	1.250
OKMLE.P.IN.065.M1050	32	50	65	M10	83	1.500
OKMLE.P.IN.065.M1075	32	75	65	M10	108	1.500
OKMLE.P.IN.065.M10100	32	100	65	M10	133	1.500
OKMLE.P.IN.065.M10125	32	125	65	M10	158	1.500
OKMLE.P.IN.065.M1250	32	50	65	M12	83	1.500
OKMLE.P.IN.065.M1275	32	75	65	M12	108	1.500
OKMLE.P.IN.065.M12100	32	100	65	M12	133	1.500
OKMLE.P.IN.065.M12125	32	125	65	M12	158	1.500
