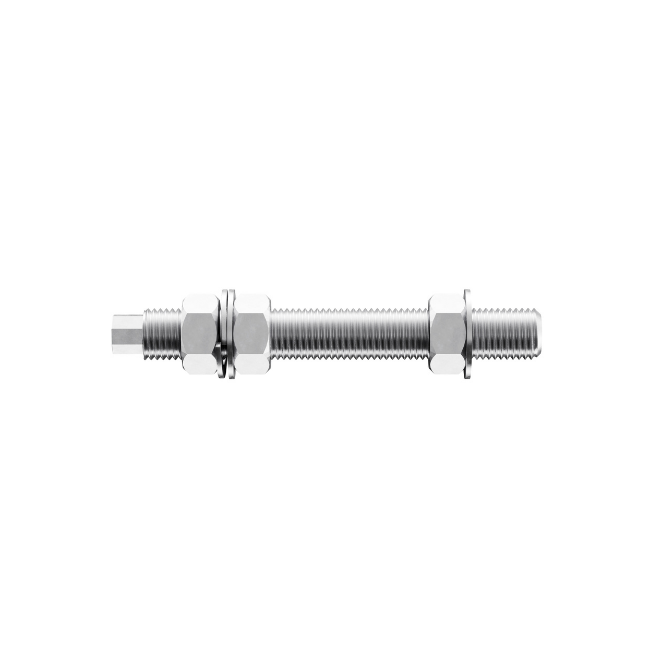

OKMLE Levelling Elements
Plastic: PA6/GF30, Black
Metal: DIN EN 10111-98, Zinc coated.
Note: OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

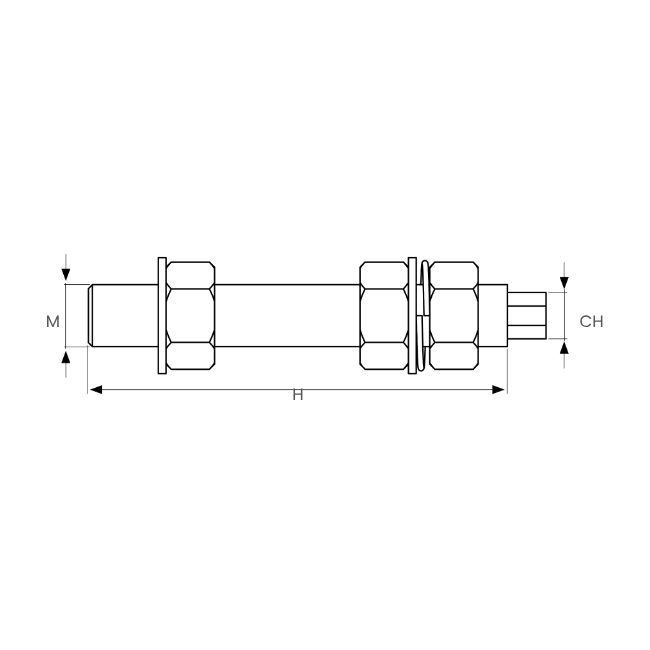

| Ürün Kodu | M | H | Somun Adedi | CH | Pul Adedi | Yaylı Pul Adedi |
|---|---|---|---|---|---|---|
| Product Code |
Metrik Ölçüsü Metric Size |
(mm) | Number of Nuts |
Number of Washers |
Number of Spring Washer |
|
| OKMLE.M12.70 | M12 | 70 | 3 | 8 | 2 | 1 |
| OKMLE.M16.118 | M16 | 118 | 3 | 12 | 2 | 1 |
| OKMLE.M20.123 | M20 | 123 | 3 | 14 | 2 | 1 |
