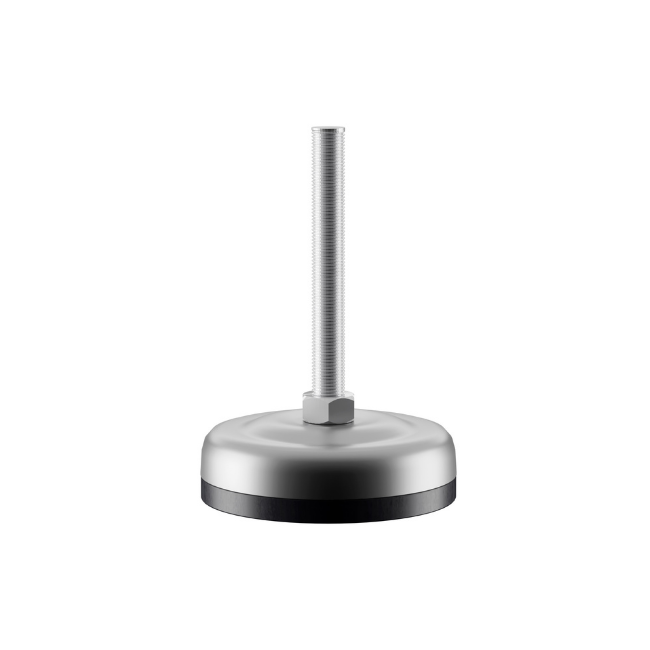

OKMLE.IN Machine Levelling Elements with Articulated System
Plastic: PA6/GF30, Black
Metal: DIN EN 10111-98, Stainless Steel
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

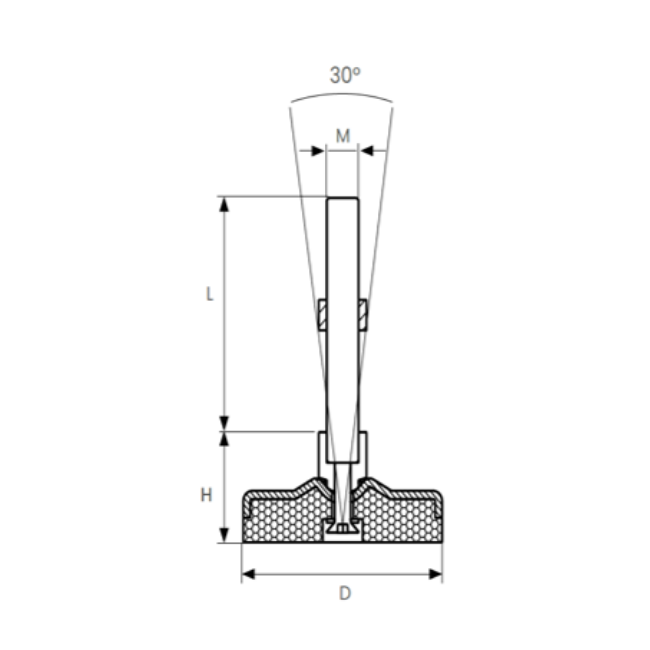

| Ürün Adı | Ø D | M | L | H | Yük Kapasitesi |
|---|---|---|---|---|---|
| Product Code | (mm) |
Metrik Ölçüsü Metric Size |
(mm) | (mm) |
Load Capacity (Kg/Pcs) |
| OKMLE.IN.050.M10.1,50.50 | 56 | M10*50 | 50 | 40 | 150 |
| OKMLE.IN.050.M12.1,75.70 | 56 | M12*70 | 70 | 40 | 150 |
| OKMLE.IN.050.M16.2,00.100 | 56 | M16*100 | 100 | 40 | 150 |
| OKMLE.IN.050.M16.2,00.150 | 56 | M16*150 | 150 | 40 | 200 |
| OKMLE.IN.060.M10.1,50.50 | 66 | M10*50 | 50 | 40 | 250 |
| OKMLE.IN.060.M12.1,75.70 | 66 | M12*70 | 70 | 40 | 300 |
| OKMLE.IN.060.M16.2,00.100 | 66 | M16*100 | 100 | 40 | 400 |
| OKMLE.IN.060.M16.2,00.150 | 66 | M16*150 | 150 | 40 | 400 |
| OKMLE.IN.080.M12.1,75.100 | 80 | M12*100 | 100 | 47 | 400 |
| OKMLE.IN.080.M16.2,00.100 | 80 | M16*100 | 100 | 47 | 500 |
| OKMLE.IN.080.M16.2,00.150 | 80 | M16*150 | 150 | 47 | 500 |
| OKMLE.IN.080.M20.2,50.100 | 80 | M20*100 | 100 | 47 | 600 |
| OKMLE.IN.100.M12.1,75.100 | 100 | M12*100 | 100 | 47 | 350 |
| OKMLE.IN.100.M16.2,00.100 | 100 | M16*100 | 100 | 47 | 600 |
| OKMLE.IN.100.M16.2,00.150 | 100 | M16*150 | 150 | 47 | 600 |
| OKMLE.IN.100.M20.2,50.100 | 100 | M20*100 | 100 | 47 | 800 |
| OKMLE.IN.120.M12.1,75.100 | 127 | M12*100 | 100 | 48 | 500 |
| OKMLE.IN.120.M16.2,00.100 | 127 | M16*100 | 100 | 48 | 800 |
| OKMLE.IN.120.M16.2,00.150 | 127 | M16*150 | 150 | 48 | 800 |
| OKMLE.IN.120.M20.2,50.150 | 127 | M20*150 | 150 | 48 | 1000 |
