OKML.TB Adjustable Machine Levelling Mount
: NBR, Black
Metal: DIN EN 10111-98.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

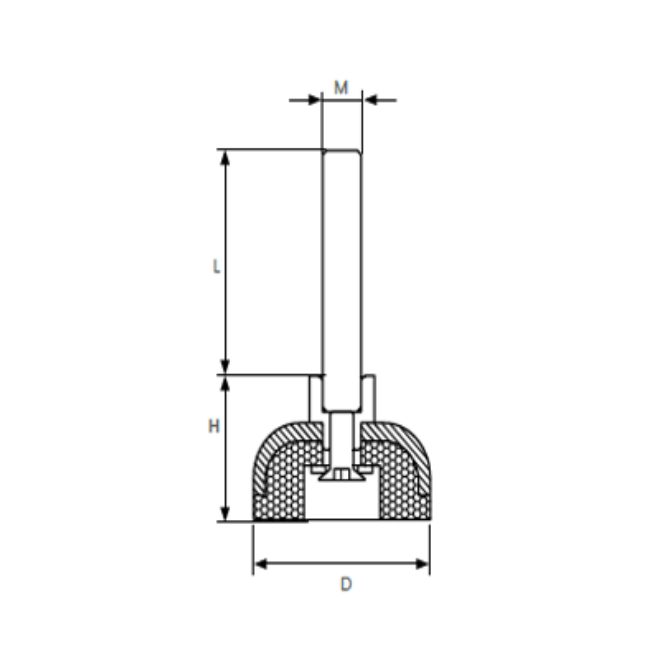

| Ürün Kodu | D | H | Metrik Ölçüsü | Vida Boyu | Ayar Mesafesi | Max. Yük |
|---|---|---|---|---|---|---|
| Item Code | (mm) | (mm) | Metric Size |
Thread Length (mm) |
Levelling Adj. (mm) |
Max. Load (Kg) |
| OKML.TB.080 | 80 | 40 | M12x1,25 | 120 | 12 | 500 |
| OKML.TB.080 | 80 | 40 | M12x1,75 | 120 | 12 | 500 |
| OKML.TB.120 | 120 | 50 | M16x1,50 | 120 | 15 | 1000 |
| OKML.TB.120 | 120 | 50 | M16x2,00 | 120 | 15 | 1000 |
| OKML.TB.160 | 160 | 55 | M20x1,50 | 170 | 15 | 2000 |
| OKML.TB.160 | 160 | 55 | M20x2,50 | 170 | 15 | 2000 |
| OKML.TB.200 | 200 | 60 | M20x2,50 | 170 | 25 | 5000 |
