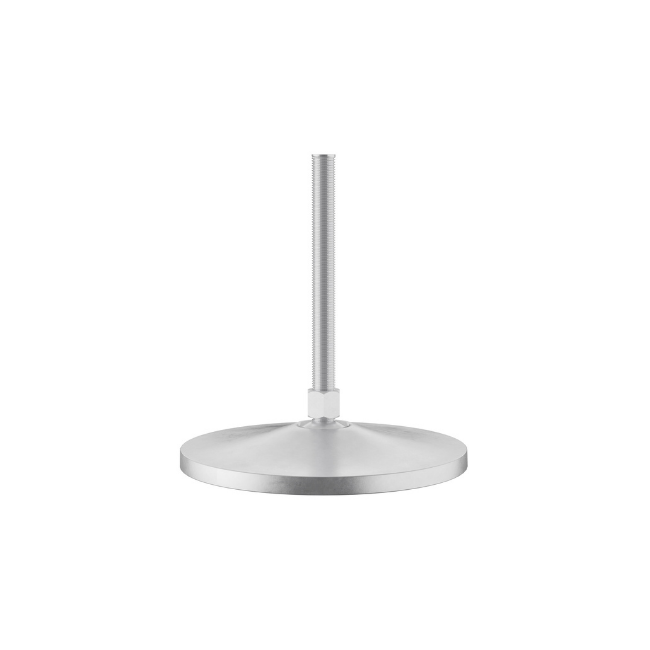

OKML.M.IN Stainless Steel Metal Machine Levelling Elements With Articulated System
Plastic: PA6/GF30, Black
Metal: DIN EN 10111-98, Stainless steel.
Note: OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

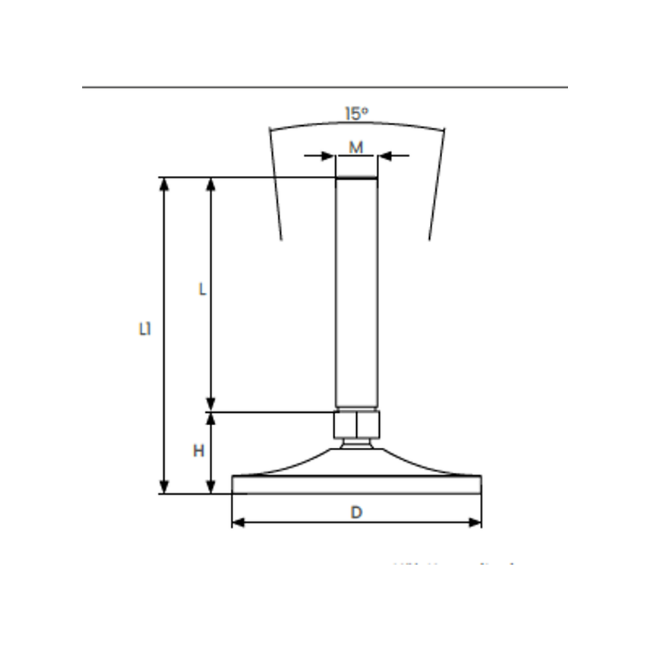

| Ürün Adı | D | M | L1 | L | H | Max. Yük Kapasitesi |
|---|---|---|---|---|---|---|
| Item Code | (mm) | Metrik Ölçüsü Metric Size |
(mm) | (mm) | (mm) | Max. Load (Kg) |
| OKML.M.IN.40.M855 | 40 | M8 | 55 | 25 | 30 | 1000 |
| OKML.M.IN.40.M880 | 40 | M8 | 80 | 50 | 30 | 1000 |
| OKML.M.IN.40.M8105 | 40 | M8 | 105 | 75 | 30 | 1000 |
| OKML.M.IN.40.M8130 | 40 | M8 | 130 | 100 | 30 | 1000 |
| OKML.M.IN.40.M1055 | 40 | M10 | 55 | 25 | 30 | 1000 |
| OKML.M.IN.40.M1080 | 40 | M10 | 80 | 50 | 30 | 1000 |
| OKML.M.IN.40.M10105 | 40 | M10 | 105 | 75 | 30 | 1000 |
| OKML.M.IN.40.M10130 | 40 | M10 | 130 | 100 | 30 | 1000 |
| OKML.M.IN.40.M1280 | 40 | M12 | 80 | 50 | 30 | 1000 |
| OKML.M.IN.40.M12105 | 40 | M12 | 105 | 75 | 30 | 1000 |
| OKML.M.IN.40.M12130 | 40 | M12 | 130 | 100 | 30 | 1000 |
| OKML.M.IN.40.M12155 | 40 | M12 | 155 | 125 | 30 | 1000 |
| OKML.M.IN.60.M1280 | 60 | M12 | 80 | 50 | 30 | 1500 |
| OKML.M.IN.60.M12105 | 60 | M12 | 105 | 75 | 30 | 1500 |
| OKML.M.IN.60.M12130 | 60 | M12 | 130 | 100 | 30 | 1500 |
| OKML.M.IN.60.M12155 | 60 | M12 | 155 | 125 | 30 | 1500 |
| OKML.M.IN.60.M1680 | 60 | M16 | 80 | 50 | 30 | 1500 |
| OKML.M.IN.60.M16105 | 60 | M16 | 105 | 75 | 30 | 1500 |
| OKML.M.IN.60.M16130 | 60 | M16 | 130 | 100 | 30 | 1500 |
| OKML.M.IN.60.M16155 | 60 | M16 | 155 | 125 | 30 | 1500 |
| OKML.M.IN.80.M1290 | 80 | M12 | 90 | 50 | 40 | 2500 |
| OKML.M.IN.80.M12115 | 80 | M12 | 115 | 75 | 40 | 2500 |
| OKML.M.IN.80.M12140 | 80 | M12 | 140 | 100 | 40 | 2500 |
| OKML.M.IN.80.M12165 | 80 | M12 | 165 | 125 | 40 | 2500 |
| OKML.M.IN.80.M1690 | 80 | M16 | 90 | 50 | 40 | 2500 |
| OKML.M.IN.80.M16115 | 80 | M16 | 115 | 75 | 40 | 2500 |
| OKML.M.IN.80.M16140 | 80 | M16 | 140 | 100 | 40 | 2500 |
| OKML.M.IN.80.M16165 | 80 | M16 | 165 | 125 | 40 | 2500 |
| OKML.M.IN.100.M1690 | 100 | M16 | 90 | 50 | 40 | 3000 |
| OKML.M.IN.100.M16115 | 100 | M16 | 115 | 75 | 40 | 3000 |
| OKML.M.IN.100.M16140 | 100 | M16 | 140 | 100 | 40 | 3000 |
| OKML.M.IN.100.M16165 | 100 | M16 | 165 | 125 | 40 | 3000 |
| OKML.M.IN.100.M16190 | 100 | M16 | 190 | 150 | 40 | 3000 |
| OKML.M.IN.100.M16215 | 100 | M16 | 215 | 175 | 40 | 3000 |
| OKML.M.IN.100.M16240 | 100 | M16 | 240 | 200 | 40 | 3000 |
| OKML.M.IN.100.M20115 | 100 | M20 | 115 | 75 | 40 | 3000 |
| OKML.M.IN.100.M20140 | 100 | M20 | 140 | 100 | 40 | 3000 |
| OKML.M.IN.100.M20165 | 100 | M20 | 165 | 125 | 40 | 3000 |
| OKML.M.IN.100.M20190 | 100 | M20 | 190 | 150 | 40 | 3000 |
| OKML.M.IN.100.M20215 | 100 | M20 | 215 | 175 | 40 | 3000 |
| OKML.M.IN.100.M20240 | 100 | M20 | 240 | 200 | 40 | 3000 |
| OKML.M.IN.120.M1692 | 120 | M16 | 92 | 50 | 42 | 3500 |
| OKML.M.IN.120.M16117 | 120 | M16 | 117 | 75 | 42 | 3500 |
| OKML.M.IN.120.M16142 | 120 | M16 | 142 | 100 | 42 | 3500 |
| OKML.M.IN.120.M16167 | 120 | M16 | 167 | 125 | 42 | 3500 |
| OKML.M.IN.120.M16192 | 120 | M16 | 192 | 150 | 42 | 3500 |
| OKML.M.IN.120.M16217 | 120 | M16 | 217 | 175 | 42 | 3500 |
| OKML.M.IN.120.M16242 | 120 | M16 | 242 | 200 | 42 | 3500 |
| OKML.M.IN.120.M20117 | 120 | M20 | 117 | 75 | 42 | 3500 |
| OKML.M.IN.120.M20142 | 120 | M20 | 142 | 100 | 42 | 3500 |
| OKML.M.IN.120.M20167 | 120 | M20 | 167 | 125 | 42 | 3500 |
| OKML.M.IN.120.M20192 | 120 | M20 | 192 | 150 | 42 | 3500 |
| OKML.M.IN.120.M20217 | 120 | M20 | 217 | 175 | 42 | 3500 |
| OKML.M.IN.120.M20242 | 120 | M20 | 242 | 200 | 42 | 3500 |
