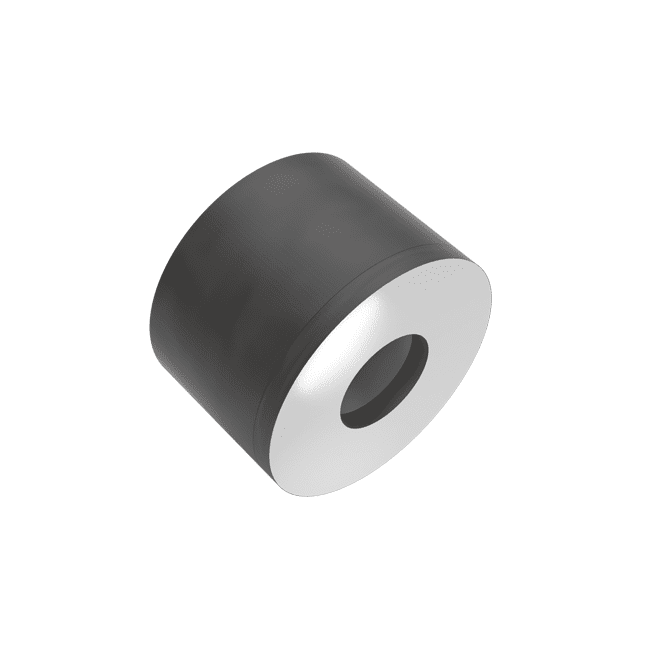

OKMKT Cylindrical Vibration Isolator
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

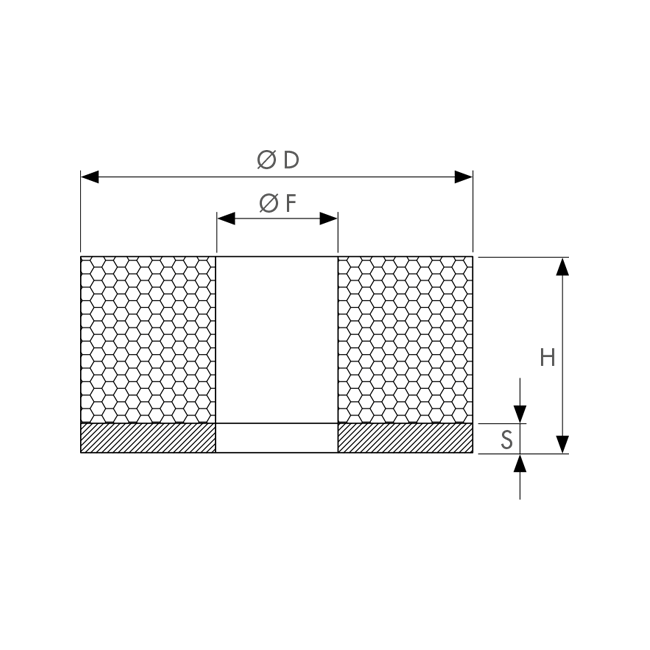

| Ürün Kodu | Ø D | H | Ø F | S |
|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) |
| OKMKT.01.00 | Ø 30 | 15 | Ø 7 | 2,5 |
| OKMKT.01.01 | Ø 50 | 30 | Ø 12 | 1,5 |
| OKMKT.02.00 | Ø 30 | 15 | Ø 11 | 2,5 |
| OKMKT.02.01 | Ø 50 | 20 | Ø 12 | 1,5 |
| OKMKT.03.00 | Ø 30 | 20 | Ø 12 | 2,5 |
| OKMKT.04.00 | Ø 40 | 20 | Ø 12,5 | 3 |
| OKMKT.05.00 | Ø 40 | 15 | Ø 14 | 3 |
| OKMKT.06.00 | Ø 40 | 10 | Ø 31 | 3 |
| OKMKT.07.00 | Ø 50 | 20 | Ø 16 | 4 |
| OKMKT.08.00 | Ø 50 | 10 | Ø 42 | 4 |
| OKMKT.09.00 | Ø 60 | 30 | Ø 21 | 5 |
| OKMKT.10.00 | Ø 80 | 40 | Ø 25 | 6 |
