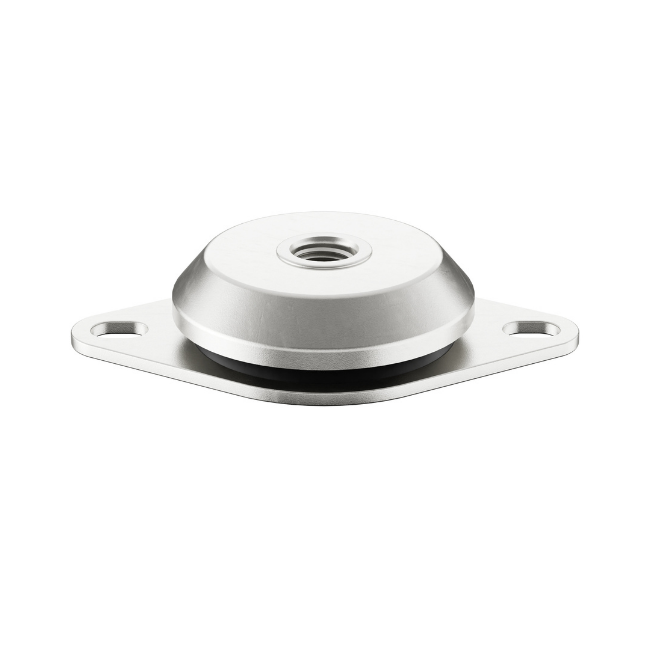

OKMIM Machine Mounts
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

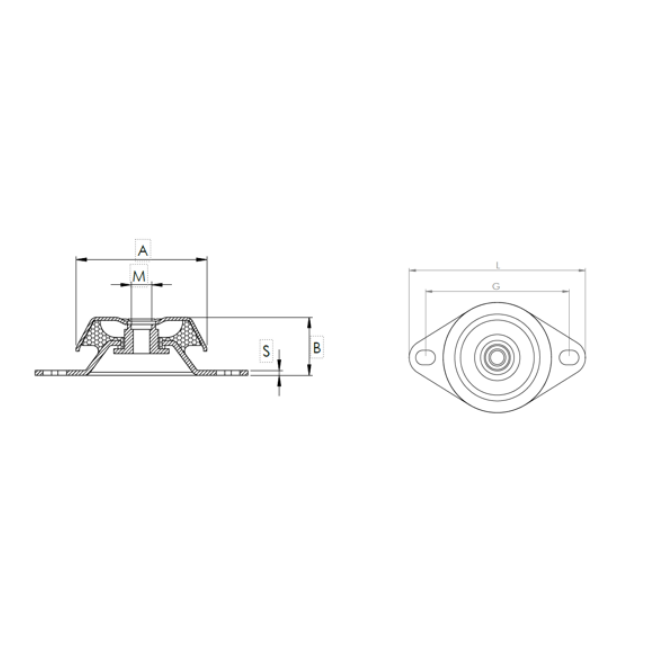

| Ürün Adı | A | B | M | G | L | S |
|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) |
Metrik Ölçüsü Metric Size |
(mm) | (mm) | (mm) |
| OKMIM.063.H34.M10 | 63 | 34 | M10 | 85,5 | 110 | 2,5 |
| OKMIM.063.H34.M12 | 63 | 34 | M12 | 85,5 | 110 | 2,5 |
| OKMIM.078.H33.M10 | 78 | 33 | M10 | 110 | 135 | 3 |
| OKMIM.078.H33.M12 | 78 | 33 | M12 | 110 | 135 | 3 |
| OKMIM.083.H33.M10 | 83 | 33 | M10 | 110 | 135 | 3 |
| OKMIM.083.H33.M12 | 83 | 33 | M12 | 110 | 135 | 3 |
| OKMIM.083.H35.M10 | 83 | 35 | M10 | 110 | 135 | 3 |
| OKMIM.083.H35.M12 | 83 | 35 | M12 | 110 | 135 | 3 |
| OKMIM.092.H34.M10 | 92 | 34 | M10 | 123,5 | 150 | 3 |
| OKMIM.092.H34.M12 | 92 | 34 | M12 | 123,5 | 150 | 3 |
| OKMIM.106.H38.M12 | 106 | 38 | M12 | 140 | 170 | 3 |
| OKMIM.106.H38.M16 | 106 | 38 | M16 | 140 | 170 | 3 |
| OKMIM.106.H42.M12 | 106 | 42 | M12 | 140 | 170 | 3 |
| OKMIM.106.H42.M16 | 106 | 42 | M16 | 140 | 170 | 3 |
| OKMIM.125.H46.M16 | 125 | 46 | M16 | 156 | 192 | 4 |
