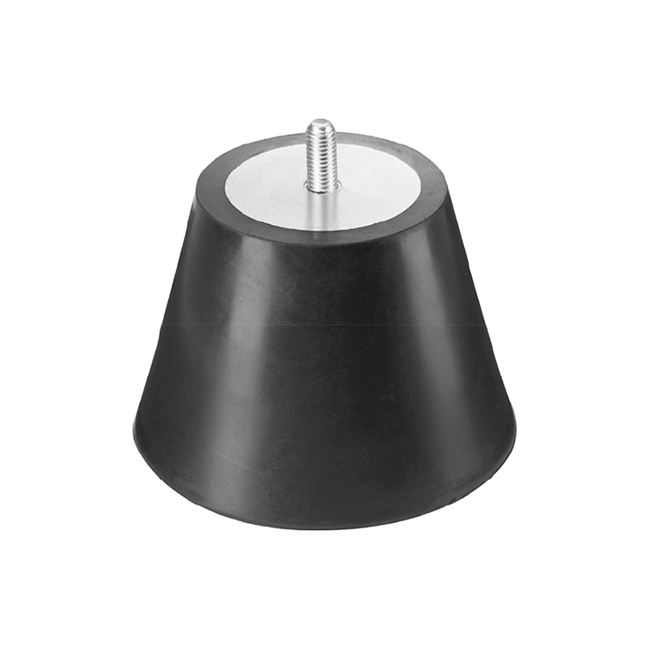

OKMAT Generator Mount
: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

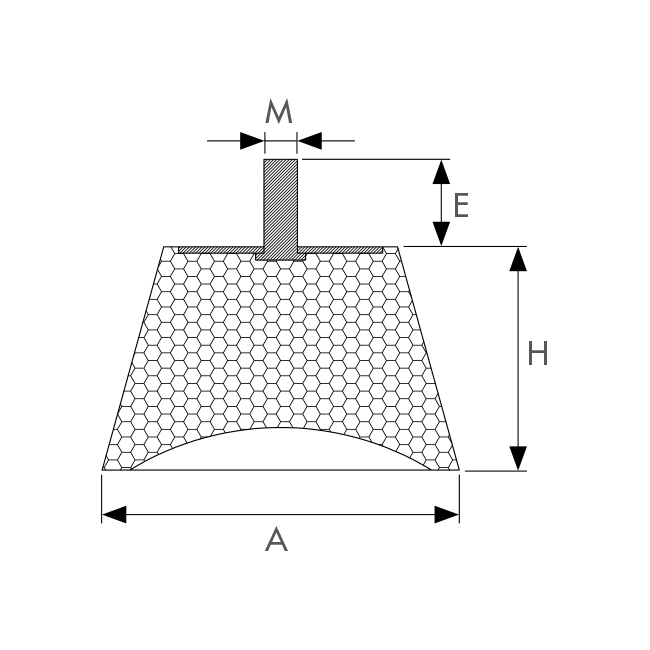

| Ürün Kodu | A | H | E | M |
|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) |
| OKMAT.01.00 | 168 | 105 | 42 | 16 |
| OKMAT.02.00 | 150 | 105 | 27 | 12 |
| OKMAT.03.00 | 150 | 63 | 27 | 12 |
| OKMAT.04.00 | 110 | 50 | 22 | 12 |
| OKMAT.05.00 | 92 | 46,5 | 38 | 12 |
