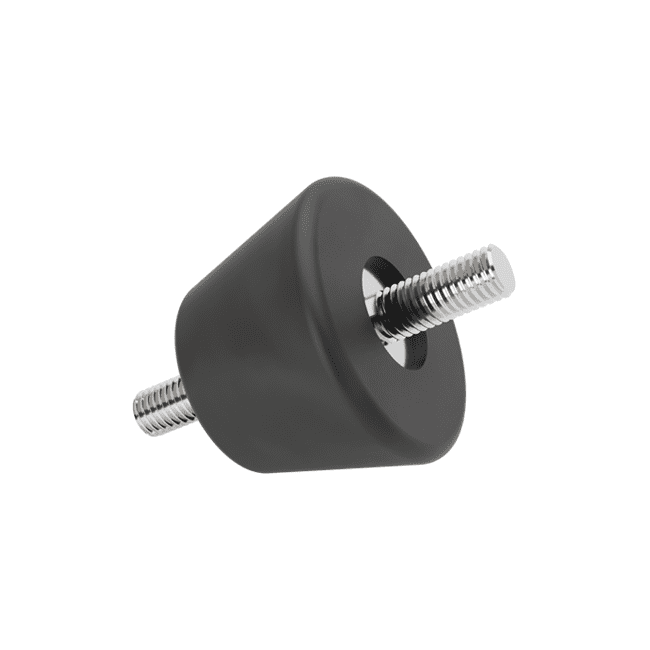

OKKIT Conical Vibration Mount
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

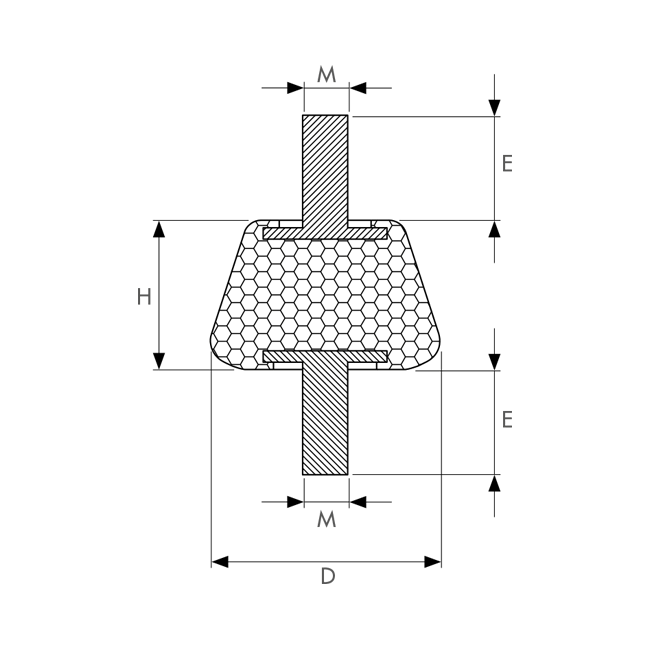

| Ürün Kodu | D | d | H | E | Metric Size M |
|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | |
| OKKIT.01.00 | 40 | 28 | 26 | 23 | M8 |
| OKKIT.01.01 | 38 | 28 | 22 | 20 | M8 |
| OKKIT.01.02 | 45 | 32 | 30 | 20 | M8 |
