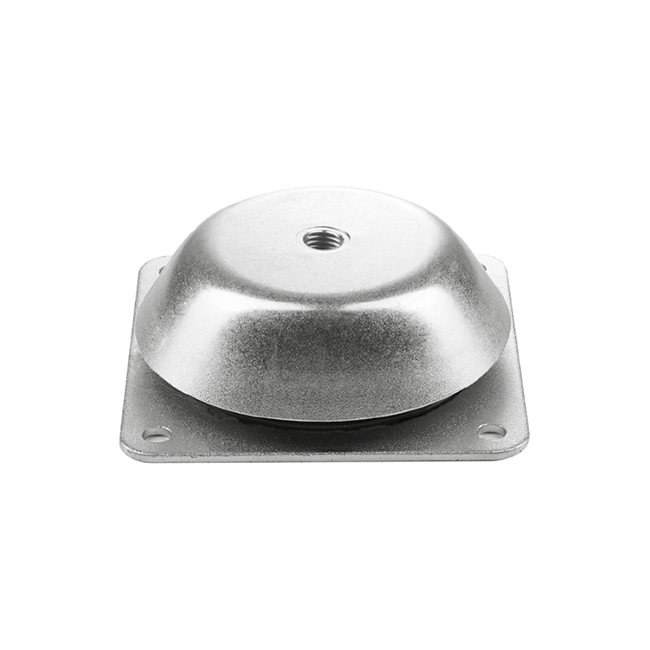

OKKCS Bell Support with Nut
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

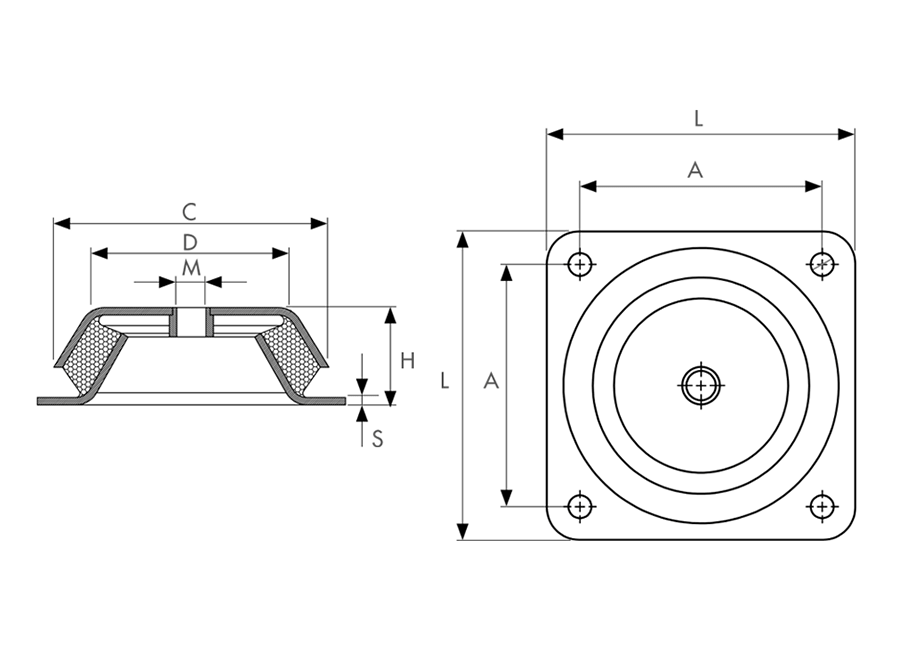

| Ürün Kodu | Max. Yük | L | A | C | D | S | H | M |
|---|---|---|---|---|---|---|---|---|
| Product Code | Max. Load (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
Metrik Ölçüsü Metric Size |
| OKKCS.168.M16 | 685 | 168 | 132 | 150 | 110 | 4 | 51 | M16 |
| OKKCS.184.M20 | 1480 | 184 | 150 | 178 | 125 | 4,5 | 63 | M20 |
