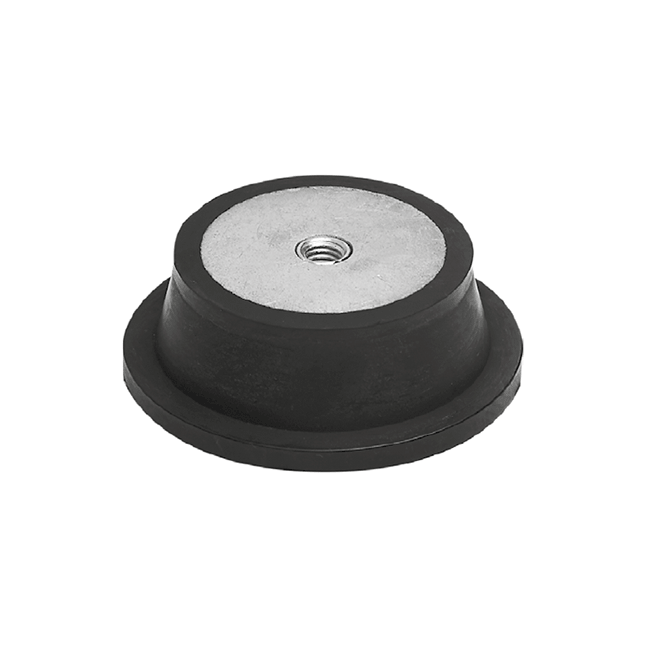

OKCS Vibration Damping Machine Feet
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

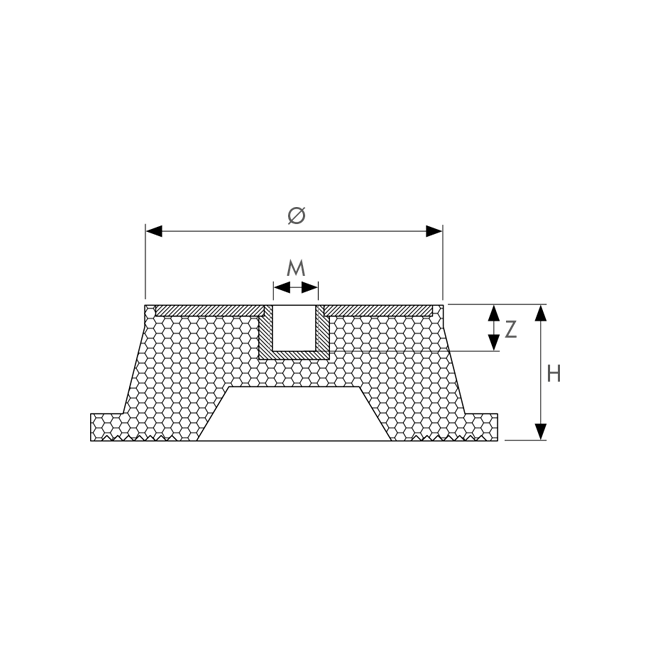

| Ürün Kodu | Ø | H | M | Z | Max. Yük |
|---|---|---|---|---|---|
| Product Code | (mm) | (mm) |
Metrik Ölçüsü Metric Size |
(mm) | Max. Load (kg) |
| OKSC.30.20.M808 | 30 | 20 | 8 | 7 | 25 |
| OKSC.55.25.M808 | 55 | 25 | 8 | 7 | 85 |
| OKSC.75.50.M1212 | 75 | 50 | 12 | 10 | 159 |
| OKSC.100.50.M1616 | 100 | 50 | 16 | 16 | 282 |
| OKSC.125.70.M1616 | 125 | 70 | 16 | 18 | 440 |
