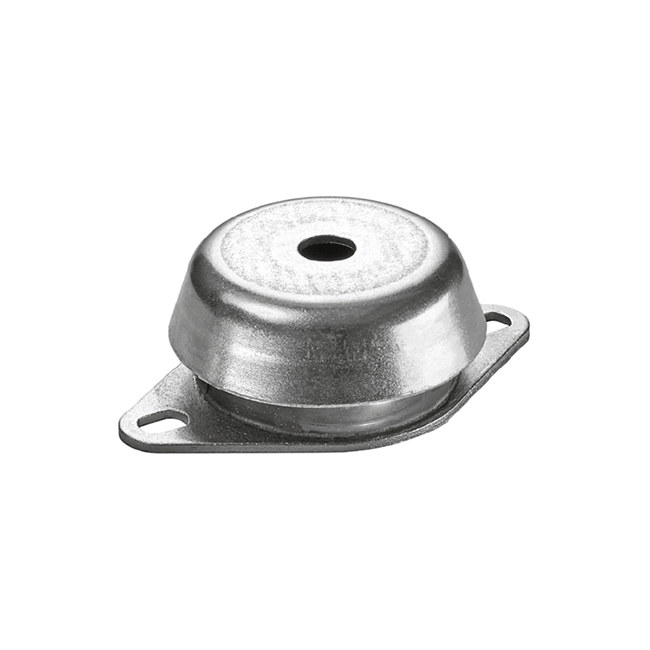

OKCD Vibration Damping Machine Feet (Without Nuts)
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

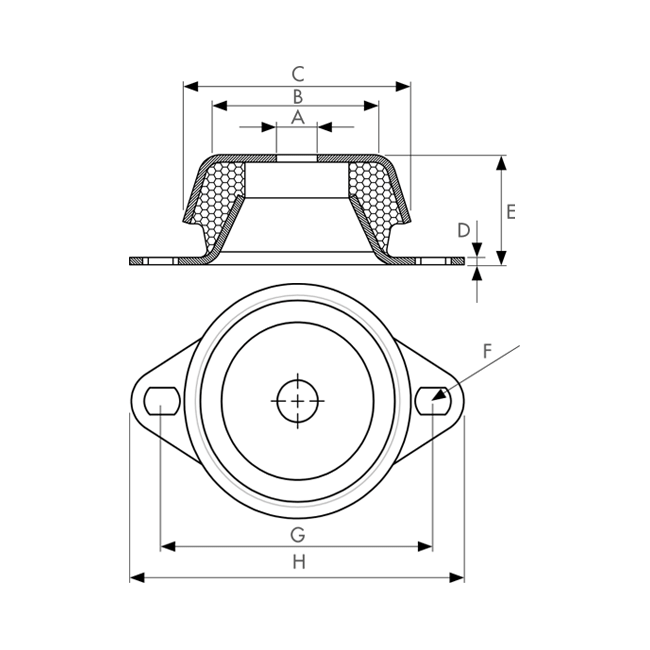

| Ürün Kodu | A | B | C | D | E | F | G | H | Max. Yük |
|---|---|---|---|---|---|---|---|---|---|
| Product Code | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Max. Load (Kg) |
| OKCD.048 | 8.5 | 38 | 48 | 1.5 | 23 | 6.5 | 68 | 80 | 102 |
| OKCD.062 | 10.5 | 50 | 62 | 2 | 30 | 8.5 | 85 | 100 | 214 |
| OKCD.092 | 16.5 | 72 | 92 | 3 | 44 | 10.5 | 110 | 135 | 343 |
| OKCD.119 | 24.5 | 95 | 119 | 4 | 48 | 16.5 | 160 | 190 | 641 |
