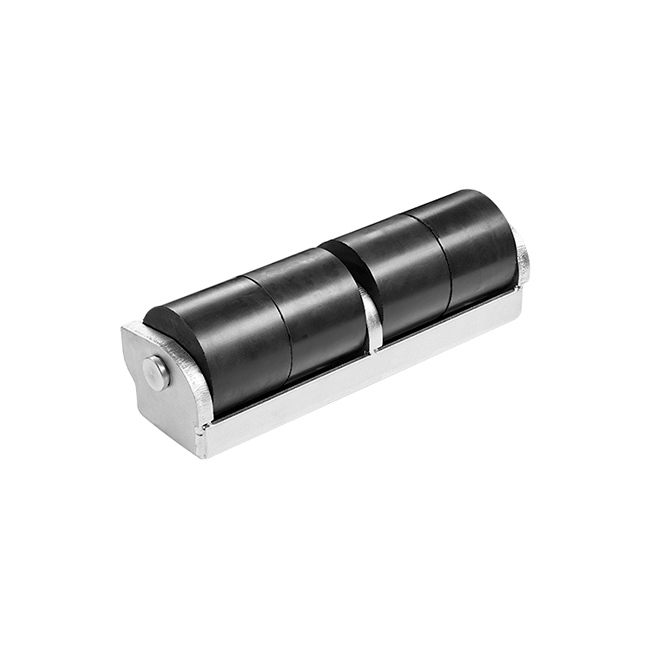

26-OKRT-4T
Elastomer Part: NR, Black
Metal: DIN EN 10111-98, Zinc coated.
Working Temperature Range: -30°C / +80°C
Note: Rubber shore and rubber compounds are available on changes due to customer applications. OK-LAS reserves the right to make changes to the design and technical specifications without prior notice.

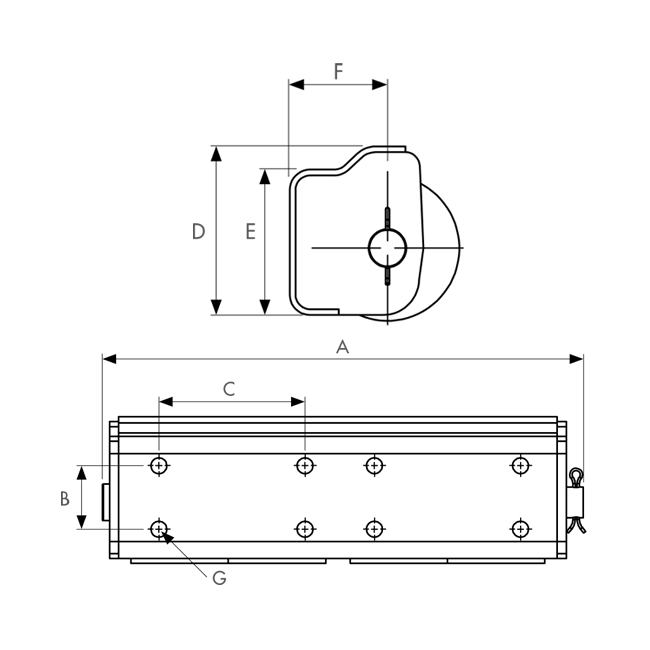

| Ürün Kodu | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| Product Group | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| OKRT.395116.4T | 395 | 52 | 120 | 116 | 100 | 68 | Ø13 | Ø100 | Ø30 |
